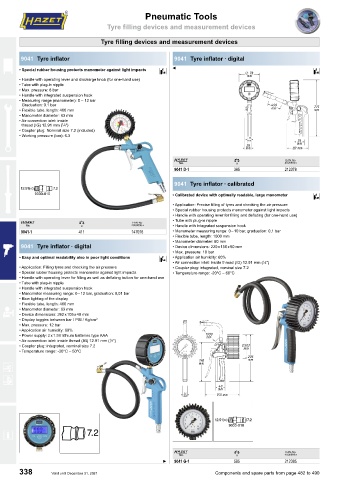

Pneumatic Tools Pneumatic Tools

Tyre filling devices and measurement devices Grease Gun, Spray Gun, Air Blow and Suction Gun

Tyre filling devices and measurement devices

9041 Tyre inflator 9041 Tyre inflator ∙ digital

• Special rubber housing protects manometer against light impacts C C C
• Handle with operating lever and discharge knob (for one-hand use)
• Tube with plug-in nipple
• Max. pressure: 8 bar
• Handle with integrated suspension hook
• Measuring range (manometer): 0 – 12 bar
Graduation: 0.1 bar
• Flexible tube, length: 400 mm
• Manometer diameter: 63 mm
• Air connection inlet: inside
1
thread (IG) 12.91 mm ( ⁄4″)
• Coupler plug: Nominal size 7.2 (included)
• Working pressure (bar): 6.3

1 5 4
9041 D-1 385 212378

9041 Tyre inflator ∙ calibrated
• Calibrated device with optimally readable, large manometer C
• Application: Precise filling of tyres and checking the air pressure
• Special rubber housing protects manometer against light impacts
• Handle with operating lever for filling and deflating (for one-hand use)
1 5 4 • Tube with plug-in nipple
• Handle with integrated suspension hook
9041-1 411 147076 • Manometer measuring range: 0 – 10 bar, graduation: 0,1 bar
• Flexible tube, length: 1000 mm
• Manometer diameter: 80 mm
9041 Tyre inflator ∙ digital • Device dimensions: 220 x 150 x 90 mm
• Max. pressure: 10 bar
• Easy and optimal readability also in poor light conditions C • Application air humidity: 60%
• Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
1
• Application: Filling tyres and checking the air pressure • Coupler plug: integrated, nominal size 7.2
• Special rubber housing protects manometer against light impacts • Temperature range: -20°C – 60°C
• Handle with operating lever for filling as well as deflating button for one-hand use
• Tube with plug-in nipple
• Handle with integrated suspension hook
• Manometer measuring range: 0 – 12 bar, graduation: 0,01 bar
• Blue lighting of the display
• Flexible tube, length: 400 mm
• Manometer diameter: 63 mm
• Device dimensions: 262 x 105 x 40 mm
• Display toggles between bar / PSI / Kg/cm 2
• Max. pressure: 12 bar
• Application air humidity: 60%
• Power supply: 2 x 1.5V lithium batteries type AAA
• Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
1
• Coupler plug: integrated, nominal size 7.2
• Temperature range: -20°C – 50°C

1 5 4
B 9041 G-1 585 212385
338 Valid until December 31, 2021 Components and spare parts from page 482 to 490
