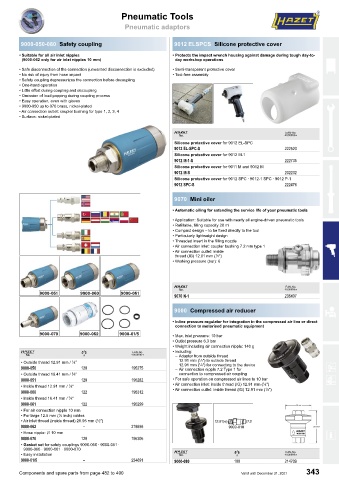

Page 344 - HAZET英文2021

Pneumatic Tools

Pneumatic adaptors

9000-050-080 Safety coupling 9012 ELSPCS Silicone protective cover

• Suitable for all air inlet nipples • Protects the impact wrench housing against damage during tough day-to-
(9000-062 only for air inlet nipples 10 mm) day workshop operations
• Safe disconnection of the connection (unwanted disconnection is excluded) • Semi-transparent protective cover
• No risk of injury from hose impact • Tool-free assembly
• Safety coupling depressurizes the connection before decoupling
• One-hand operation
• Little effort during coupling and decoupling
• Omission of loud popping during coupling process
• Easy operation, even with gloves
• 9000-050 up to 070 brass, nickel-plated
• Air connection outlet: coupler bushing for type 1, 2, 3, 4
• Surface: nickel-plated

1 4

Silicone protective cover for 9012 EL-SPC
9012 EL-SPC-S 222520
Silicone protective cover for 9012 M-1
9012 M-1-S 222735
Silicone protective cover for 9011 M and 9012 M
9012 M-S 202232
Silicone protective cover for 9012 SPC ∙ 9012-1 SPC ∙ 9012 P-1
9012 SPC-S 222476

9070 Mini oiler

• Automatic oiling for extending the service life of your pneumatic tools
• Application: Suitable for use with nearly all engine-driven pneumatic tools
• Refillable, filling capacity 28 ml
• Compact design – to be fixed directly to the tool
• Particularly lightweight design
• Threaded insert in the filling nozzle
• Air connection inlet: coupler bushing 7.2 mm type 1
• Air connection outlet: inside
1
thread (IG) 12.91 mm ( ⁄4″)
• Working pressure (bar): 6

1 4
9000-051 9000-060 9000-061
9070 N-1 206407
9000 Compressed air reducer

• Inline pressure regulator for integration in the compressed air line or direct
connection to motorised pneumatic equipment
9000-070 9000-062 9000-01/5 • Max. inlet pressure: 10 bar
• Outlet pressure 6.3 bar
• Weight including air connection nipple: 140 g
1 5 4 • Including:
– Adapter from outside thread
1
1
• Outside thread 12.91 mm / ⁄4″ 12.91 mm ( ⁄4″) to outside thread
1
12.91 mm ( ⁄4″) for connecting to the device
9000-050 129 195275 – Air connection nipple 7.2 Type 1 for
• Outside thread 16.41 mm / ⁄8″ connection to compressed air coupling
3
9000-051 129 195282 • For safe operation on compressed air lines to 10 bar
1
• Inside thread 12.91 mm / ⁄4″ • Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
1
1
9000-060 122 195312 • Air connection outlet: inside thread (IG) 12.91 mm ( ⁄4″)
• Inside thread 16.41 mm / ⁄8″
3
9000-061 122 195299
• For air connection nipple 10 mm
1
• For large 12.5 mm ( ⁄2 inch) cables
1
• Air inlet thread (inside thread) 20.95 mm ( ⁄2″)
9000-062 – 218936
• Hose nipple: x 10 mm
9000-070 129 195305
• Gasket set for safety couplings 9000-050 ∙ 9000-051 ∙
9000-060 ∙ 9000-061 ∙ 9000-070 1 5
• Easy installation 4
9000-01/5 – 234691 9000-080 100 214709
Components and spare parts from page 482 to 490 Valid until December 31, 2021 343
