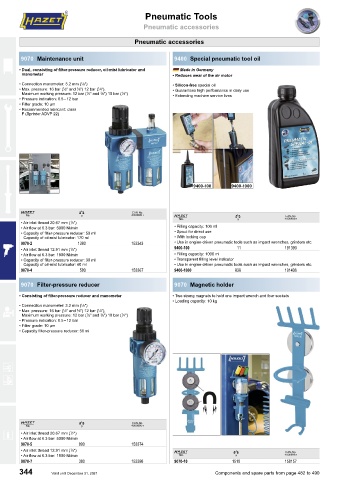

Page 345 - HAZET英文2021

Pneumatic Tools Pneumatic Tools

Pneumatic accessories HAZET SERVICE for torque wrenches and pneumatic tools

Pneumatic accessories

9070 Maintenance unit 9400 Special pneumatic tool oil

• Dual, consisting of filter-pressure reducer, oil-mist lubricator and Made in Germany
manometer • Reduces wear of the air motor
• Connection manometer: 3.2 mm ( ⁄8") • Silicon-free special oil
1
1
1
• Max. pressure: 16 bar ( ⁄2" and ⁄8") 12 bar ( ⁄4"), • Guarantees high performance in daily use
3
Maximum working pressure: 12 bar ( ⁄2" and ⁄8") 10 bar ( ⁄4") • Extending machine service lives
1
1
3
• Pressure indication: 0.5 – 12 bar
• Filter grade: 10 µm
• Recommended lubricant: class
F (Sprinter ADVP 22)

9400-100 9400-1000

1 5 4 1 5 4

• Air inlet thread 20.67 mm ( ⁄2″)
1
• Air flow at 6.3 bar: 5000 Nl/min • Filling capacity: 100 ml
• Capacity of filter-pressure reducer: 50 ml • Spout for direct use
Capacity of oil-mist lubricator: 170 ml • With locking cap
9070-2 1380 153343 • Use in engine-driven pneumatic tools such as impact wrenches, grinders etc.
• Air inlet thread 12.91 mm ( ⁄4″) 9400-100 11 191390
1
• Air flow at 6.3 bar: 1800 Nl/min • Filling capacity: 1000 ml
• Capacity of filter-pressure reducer: 30 ml • Transparent filling level indicator
Capacity of oil-mist lubricator: 40 ml • Use in engine-driven pneumatic tools such as impact wrenches, grinders etc.
9070-4 580 153367 9400-1000 838 191406

9070 Filter-pressure reducer 9070 Magnetic holder
• Consisting of filter-pressure reducer and manometer • Two strong magnets to hold one impact wrench and four sockets
• Loading capacity: 10 kg
1
• Connection manometer: 3.2 mm ( ⁄8")
• Max. pressure: 16 bar ( ⁄2" and ⁄8") 12 bar ( ⁄4"),
1
3
1
3
1
Maximum working pressure: 12 bar ( ⁄2" and ⁄8") 10 bar ( ⁄4")
1
• Pressure indication: 0.5 – 12 bar
• Filter grade: 10 µm
• Capacity filter-pressure reducer: 50 ml

1 5 4
• Air inlet thread 20.67 mm ( ⁄2″)
1
• Air flow at 6.3 bar: 5000 Nl/min
9070-5 890 153374
• Air inlet thread 12.91 mm ( ⁄4″) 1 5 4
1
• Air flow at 6.3 bar: 1800 Nl/min
9070-7 380 153398 9070-10 1510 158157
344 Valid until December 31, 2021 Components and spare parts from page 482 to 490
