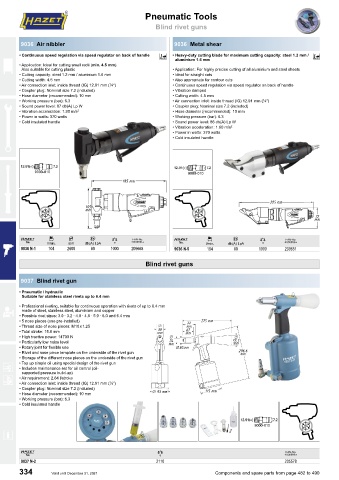

Page 335 - HAZET英文2021

Pneumatic Tools Pneumatic Tools

Blind rivet guns Air blow tools

9036 Air nibbler 9036 Metal shear

• Continuous speed regulation via speed regulator on back of handle A • Heavy-duty cutting blade for maximum cutting capacity: steel 1.2 mm / A
aluminium 1.6 mm
• Application: Ideal for cutting small radii (min. 4.5 mm).
Also suitable for cutting plastic • Application: For highly precise cutting of all aluminium and steel sheets
• Cutting capacity: steel 1.2 mm / aluminium 1.6 mm • Ideal for straight cuts
• Cutting width: 4.5 mm • Also appropriate for contour cuts
1
• Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″) • Continuous speed regulation via speed regulator on back of handle
• Coupler plug: Nominal size 7.2 (included) • Vibration damped
• Hose diameter (recommended): 10 mm • Cutting width: 4.5 mm
• Working pressure (bar): 6.3 • Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
1
• Sound power level: 87 db(A) Lp W • Coupler plug: Nominal size 7.2 (included)
• Vibration acceleration: 1.90 m/s 2 • Hose diameter (recommended): 10 mm
• Power in watts: 370 watts • Working pressure (bar): 6.3
• Cold insulated handle • Sound power level: 86 db(A) Lp W
• Vibration acceleration: 1.60 m/s 2
• Power in watts: 370 watts
• Cold insulated handle

1 l/min. rpm db (A) LpA 5 4 1 l/min. db (A) LpA 5 4
N
N
^
?
?
9036 N-1 104 2600 80 1000 209668 9036 N-5 104 80 1000 209651
Blind rivet guns

9037 Blind rivet gun
• Pneumatic / hydraulic
Suitable for stainless steel rivets up to 6.4 mm
• Professional riveting, suitable for continuous operation with rivets of up to 6.4 mm
made of steel, stainless steel, aluminium and copper
• Possible rivet sizes: 3.0 ∙ 3.2 ∙ 4.0 ∙ 4.8 ∙ 5.0 ∙ 6.0 and 6.4 mm
• 5 nose pieces (one pre-installed)
• Thread size of nose pieces: M10 x 1.25
• Total stroke: 15.8 mm
• High tractive power: 14700 N
• Particularly low noise level
• Rotary joint for flexible use
• Rivet and nose piece template on the underside of the rivet gun
• Storage of the different nose pieces on the underside of the rivet gun
• Top up simple oil using special design of the rivet gun
• Includes maintenance set for oil control (oil-
supported pressure build-up)
• Air requirement: 2.64 l/stroke
• Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
1
• Coupler plug: Nominal size 7.2 (included)
• Hose diameter (recommended): 10 mm
• Working pressure (bar): 6.3
• Cold insulated handle

1 5 4
9037 N-2 2110 205578
334 Valid until December 31, 2021 Components and spare parts from page 482 to 490
