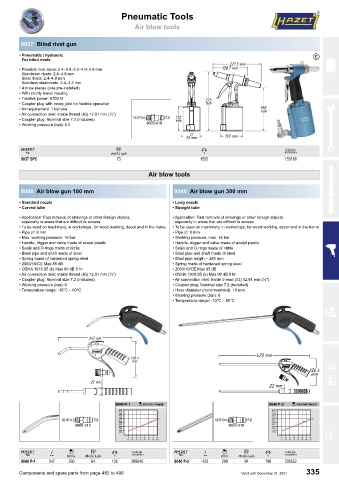

Page 336 - HAZET英文2021

Pneumatic Tools

Air blow tools

9037 Blind rivet gun

• Pneumatic / hydraulic /
For blind rivets
• Possible rivet sizes: 2.4–3.0–3.2–4.0–4.8 mm
Aluminium rivets: 2.4–4.8 mm
Steel rivets: 2.4–4.8 mm
Stainless steel rivets: 2.4–3.2 mm
• 4 nose pieces (one pre-installed)
• With sturdy metal housing
• Tractive power: 8700 N
• Coupler plug with rotary joint for flexible operation
• Air requirement: 1 l/stroke
• Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
1
• Coupler plug: Nominal size 7.2 (included)
• Working pressure (bar): 6.3

1 db (A) LpA 5 4
N
9037 SPC 73 1500 150168

Air blow tools

9040 Air blow gun 100 mm 9040 Air blow gun 300 mm

• Standard nozzle • Long nozzle
• Curved tube • Straight tube
• Application: Fast removal of shavings or other foreign objects, • Application: Fast removal of shavings or other foreign objects,
especially in areas that are difficult to access especially in areas that are difficult to access
• To be used on machinery, in workshops, for wood working, decor and in the home • To be used on machinery, in workshops, for wood working, decor and in the home
• Pipe x: 8 mm • Pipe x: 8 mm
• Max. working pressure: 16 bar • Working pressure, max: 16 bar
• Handle, trigger and valve made of acetal plastic • Handle, trigger and valve made of acetal plastic
• Seals and O-rings made of nitrile • Seals and O-rings made of nitrile
• Blast pipe and shaft made of steel • Blast pipe and shaft made of steel
• Spring made of hardened spring steel • Blast pipe length ~ 280 mm
• 2003/10/CE Max 85 dB • Spring made of hardened spring steel
• OSHA 1910.95 (b) Max 90 dB 8 hr • 2003/10/CE Max 85 dB
1
• Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″) • OSHA 1910.95 (b) Max 90 dB 8 hr
• Coupler plug: Nominal size 7.2 (included) • Air connection inlet: inside thread (IG) 12.91 mm ( ⁄4″)
1
• Working pressure (bar): 6 • Coupler plug: Nominal size 7.2 (included)
• Temperature range: -10°C – 80°C • Hose diameter (recommended): 10 mm
• Working pressure (bar): 6
• Temperature range: -10°C – 80°C

1 K l/min. db (A) LpA 5 4 1 K l/min. db (A) LpA 5 4
N
?
?
N
9040 P-1 247 290 84 105 209545 9040 P-2 420 290 84 190 209552
