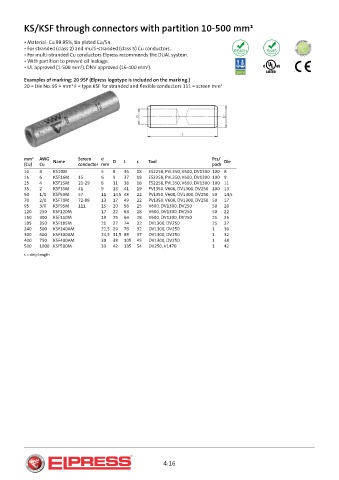

KS/KSF through connectors with partition 10-500 mm²

• Material: Cu 99.95%, tin plated Cu/Sn.
• For stranded (class 2) and multi-stranded (class 5) Cu conductors.
• For multi-stranded Cu conductors Elpress recommends the DUAL system.
• With partition to prevent oil leakage.
• UL approved (1-500 mm²). DNV approved (16-400 mm²).

Examples of marking: 20 95F (Elpress logotype is included on the marking.)
20 = Die No. 95 = mm² F = type KSF for stranded and flexible conductors 111 = screen mm²

mm² AWG Name Screen d D L s Tool Pcs/ Die
(Cu) Cu conductor mm pack
10 8 KS10M 5 8 36 18 ES2258, PVL350, V600, DV1300 100 8
16 6 KSF16M 15 6 9 37 18 ES2258, PVL350, V600, DV1300 100 9
25 4 KSF25M 21-29 8 11 38 18 ES2258, PVL350, V600, DV1300 100 11
35 2 KSF35M 41 9 13 41 19 PVL350, V600, DV1300, DV250 100 13
50 1/0 KSF50M 57 11 14,5 48 22 PVL350, V600, DV1300, DV250 50 14,5
70 2/0 KSF70M 72-88 13 17 49 22 PVL350, V600, DV1300, DV250 50 17
95 3/0 KSF95M 111 15 20 56 25 V600, DV1300, DV250 50 20
120 250 KSF120M 17 22 63 28 V600, DV1300, DV250 50 22
150 300 KSF150M 19 25 64 28 V600, DV1300, DV250 25 25
185 350 KSF185M 21 27 74 32 DV1300, DV250 25 27
240 500 KSF240AM 22,5 29 76 32 DV1300, DV250 1 30
300 600 KSF300AM 24,5 31,5 88 37 DV1300, DV250 1 32
400 750 KSF400AM 30 38 105 45 DV1300, DV250 1 38
500 1000 KSF500M 33 42 135 54 DV250, V1470 1 42
s = strip length
