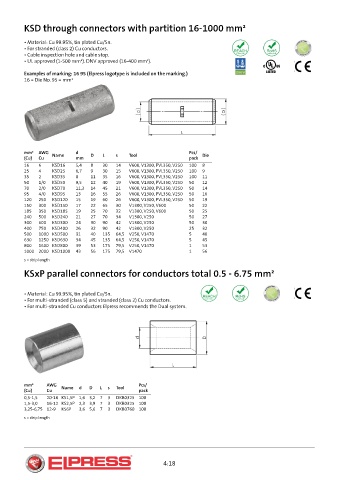

KSD through connectors with partition 16-1000 mm²

• Material: Cu 99.95%, tin plated Cu/Sn.
• For stranded (class 2) Cu conductors.
• Cable inspection hole and cable stop.
• UL approved (1-500 mm²). DNV approved (16-400 mm²).

Examples of marking: 16 95 (Elpress logotype is included on the marking.)
16 = Die No. 95 = mm²

mm² AWG Name d D L s Tool Pcs/ Die
(Cu) Cu mm pack
16 6 KSD16 5,4 8 30 14 V600, V1300, PVL350, V250 100 8
25 4 KSD25 6,7 9 30 15 V600, V1300, PVL350, V250 100 9
35 2 KSD35 8 11 35 16 V600, V1300, PVL350, V250 100 11
50 1/0 KSD50 9,5 12 40 19 V600, V1300, PVL350, V250 50 12
70 2/0 KSD70 11,3 14 45 21 V600, V1300, PVL350, V250 50 14
95 4/0 KSD95 13 16 55 26 V600, V1300, PVL350, V250 50 16
120 250 KSD120 15 19 60 26 V600, V1300, PVL350, V250 50 19
150 300 KSD150 17 22 65 30 V1300, V250, V600 50 22
185 350 KSD185 19 25 70 32 V1300, V250, V600 50 25
240 500 KSD240 21 27 70 34 V1300, V250 50 27
300 600 KSD300 24 30 90 42 V1300, V250 50 30
400 750 KSD400 26 32 90 42 V1300, V250 25 32
500 1000 KSD500 31 40 135 64,5 V250, V1470 5 40
630 1250 KSD630 34 45 135 64,5 V250, V1470 5 45
800 1600 KSD800 39 53 175 79,5 V250, V1470 1 53
1000 2000 KSD1000 43 56 175 79,5 V1470 1 56
s = strip length

KSxP parallel connectors for conductors total 0.5 - 6.75 mm²

• Material: Cu 99.95%, tin plated Cu/Sn.
• For multi-stranded (class 5) and stranded (class 2) Cu conductors.
• For multi-stranded Cu conductors Elpress recommends the Dual system.

mm² AWG Pcs/
(Cu) Cu Name d D L s Tool pack
0,5-1,5 20-16 KS1,5P 1,6 3,2 7 3 DKB0325 100
1,5-3,0 16-12 KS2,5P 2,3 3,9 7 3 DKB0325 100
3,25-6,75 12-9 KS6P 3,6 5,6 7 3 DKB0760 100
s = strip length

4:18
