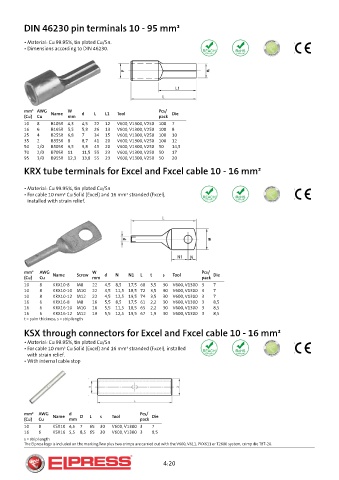

DIN 46230 pin terminals 10 - 95 mm²

• Material: Cu 99.95%, tin plated Cu/Sn.
• Dimensions according to DIN 46230.

mm² AWG Name W d L L1 Tool Pcs/ Die
(Cu) Cu mm pack
10 8 B10SR 4,3 4,5 22 12 V600, V1300, V250 100 7
16 6 B16SR 5,5 5,8 26 13 V600, V1300, V250 100 8
25 4 B25SR 6,8 7 34 15 V600, V1300, V250 100 10
35 2 B35SR 8 8,7 41 20 V600, V1300, V250 100 12
50 1/0 B50SR 9,5 9,8 45 20 V600, V1300, V250 50 14,5
70 2/0 B70SR 11 11,5 55 23 V600, V1300, V250 50 17
95 3/0 B95SR 12,3 13,8 55 23 V600, V1300, V250 50 20

KRX tube terminals for Excel and Fxcel cable 10 - 16 mm²

• Material: Cu 99.95%, tin plated Cu/Sn
• For cable 10 mm² Cu Solid (Excel) and 16 mm² stranded (Fxcel),
installed with strain relief.

mm² AWG Name Screw W d N N1 L t s Tool Pcs/ Die
(Cu) Cu mm pack
10 8 KRX10-8 M8 22 4,5 8,5 17,5 68 3,5 30 V600, V1300 3 7
10 8 KRX10-10 M10 22 4,5 11,5 18,5 72 3,5 30 V600, V1300 3 7
10 8 KRX10-12 M12 22 4,5 12,5 19,5 74 3,5 30 V600, V1300 3 7
16 6 KRX16-8 M8 16 5,5 8,5 17,5 61 2,2 30 V600, V1300 3 8,5
16 6 KRX16-10 M10 16 5,5 11,5 18,5 65 2,2 30 V600, V1300 3 8,5
16 6 KRX16-12 M12 19 5,5 12,5 19,5 67 1,9 30 V600, V1300 3 8,5
t = palm thickness, s = strip length

KSX through connectors for Excel and Fxcel cable 10 - 16 mm²
• Material: Cu 99.95%, tin plated Cu/Sn
• For cable 10 mm² Cu Solid (Excel) and 16 mm² stranded (Fxcel), installed
with strain relief.
• With internal cable stop

mm² AWG Name d D L s Tool Pcs/ Die
(Cu) Cu mm pack
10 8 KSX10 4,5 7 65 30 V600, V1300 3 7
16 6 KSX16 5,5 8,5 65 30 V600, V1300 3 8,5
s = strip length
The Elpress logo is included on the marking.Two plus two crimps are carried out with the V600, V611, PVX611 or T2600 system, crimp die TB7-20.
