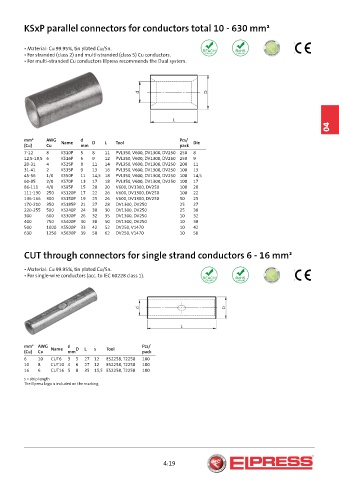

KSxP parallel connectors for conductors total 10 - 630 mm²

• Material: Cu 99.95%, tin plated Cu/Sn.
• For stranded (class 2) and multi-stranded (class 5) Cu conductors.
• For multi-stranded Cu conductors Elpress recommends the Dual system.

04

mm² AWG Name d D L Tool Pcs/ Die
(Cu) Cu mm pack
7-12 8 KS10P 5 8 11 PVL350, V600, DV1300, DV250 250 8
12,5-18,5 6 KS16P 6 9 12 PVL350, V600, DV1300, DV250 250 9
20-31 4 KS25P 8 11 14 PVL350, V600, DV1300, DV250 200 11
31-41 2 KS35P 9 13 16 PVL350, V600, DV1300, DV250 100 13
45-56 1/0 KS50P 11 14,5 18 PVL350, V600, DV1300, DV250 100 14,5
60-85 2/0 KS70P 13 17 18 PVL350, V600, DV1300, DV250 100 17
86-111 4/0 KS95P 15 20 20 V600, DV1300, DV250 100 20
111-130 250 KS120P 17 22 26 V600, DV1300, DV250 100 22
136-166 300 KS150P 19 25 26 V600, DV1300, DV250 50 25
170-210 350 KS185P 21 27 28 DV1300, DV250 25 27
220-255 500 KS240P 24 30 30 DV1300, DV250 25 30
300 600 KS300P 26 32 35 DV1300, DV250 10 32
400 750 KS400P 30 38 50 DV1300, DV250 10 38
500 1000 KS500P 33 42 52 DV250, V1470 10 42
630 1250 KS630P 39 50 62 DV250, V1470 10 50

CUT through connectors for single strand conductors 6 - 16 mm²
• Material: Cu 99.95%, tin plated Cu/Sn.
• For single-wire conductors (acc. to IEC 60228 class 1).

mm² AWG d Pcs/
(Cu) Cu Name mm D L s Tool pack
6 10 CUT6 3 5 27 12 ES2258, T2258 100
10 8 CUT10 4 6 27 12 ES2258, T2258 100
16 6 CUT16 5 8 35 15,5 ES2258, T2258 100
s = strip length
The Elpress logo is included on the marking.
