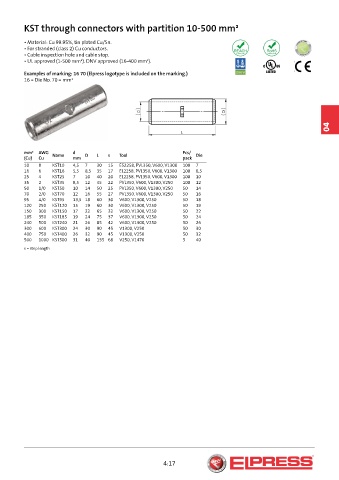

KST through connectors with partition 10-500 mm²

• Material: Cu 99.95%, tin plated Cu/Sn.
• For stranded (class 2) Cu conductors.
• Cable inspection hole and cable stop.
• UL approved (1-500 mm²). DNV approved (16-400 mm²).

Examples of marking: 16 70 (Elpress logotype is included on the marking.)
16 = Die No. 70 = mm²

04

mm² AWG Name d D L s Tool Pcs/ Die
(Cu) Cu mm pack
10 8 KST10 4,5 7 30 15 ES2258, PVL350, V600, V1300 100 7
16 6 KST16 5,5 8,5 35 17 EL2258, PVL350, V600, V1300 100 8,5
25 4 KST25 7 10 40 20 EL2258, PVL350, V600, V1300 100 10
35 2 KST35 8,5 12 45 22 PVL350, V600, V1300, V250 100 12
50 1/0 KST50 10 14 50 25 PVL350, V600, V1300, V250 50 14
70 2/0 KST70 12 16 55 27 PVL350, V600, V1300, V250 50 16
95 4/0 KST95 13,5 18 60 30 V600, V1300, V250 50 18
120 250 KST120 15 19 60 30 V600, V1300, V250 50 19
150 300 KST150 17 22 65 32 V600, V1300, V250 50 22
185 350 KST185 19 24 75 37 V600, V1300, V250 50 24
240 500 KST240 21 26 85 42 V600, V1300, V250 50 26
300 600 KST300 24 30 90 45 V1300, V250 50 30
400 750 KST400 26 32 90 45 V1300, V250 50 32
500 1000 KST500 31 40 135 68 V250, V1470 5 40
s = strip length
