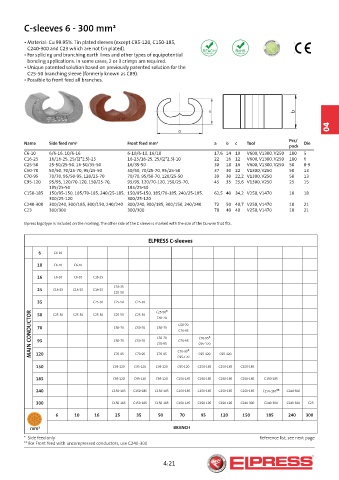

C-sleeves 6 - 300 mm²

• Material: Cu 99.95%. Tin plated sleeves (except C95-120, C150-185,
C240-300 and C23 which are not tin plated).
• For splicing and branching earth lines and other types of equipotential
bonding applications. In some cases, 2 or 3 crimps are required.
• Unique patented solution based on previously patented solution for the
C25-50 branching sleeve (formerly known as C89).
• Possible to front feed all branches.

04

Pcs/
Name Side feed mm² Front feed mm² a b c Tool Die
pack
C6-10 6/6-16, 10/6-16 6-10/6-10, 16/10 17,6 14 10 V600, V1300, V250 100 5
C16-25 16/16-25, 25/(2*2,5)-25 16-25/16-25, 25/(2*2,5)-10 22 16 12 V600, V1300, V250 100 6
C25-50 25-50/25-50, 16-50/35-50 16/35-50 30 18 16 V600, V1300, V250 50 8-9
C50-70 50/50, 70/25-70, 95/25-50 50/50, 70/25-70, 95/25-50 37 30 22 V1300, V250 50 13
C70-95 70/70, 95/50-95, 120/25-70 70/70, 95/50-70, 120/25-50 39 30 22,2 V1300, V250 50 13
C95-120 95/95, 120/70-120, 150/25-70, 95/95, 120/70-120, 150/25-70, 45 35 25,6 V1300, V250 25 15
185/25-50 185/25-50
C150-185 150/95-150, 185/70-185, 240/25-185, 150/95-150, 185/70-185, 240/25-185, 62,5 40 34,2 V250, V1470 10 18
300/25-120 300/25-120
C240-300 300/240, 300/185, 300/150, 240/240 300/240, 300/185, 300/150, 240/240 72 50 40,7 V250, V1470 10 21
C23 300/300 300/300 70 40 40 V250, V1470 10 21

Elpress logotype is included on the marking. The other side of the C sleeve is marked with the size of the Cu wire that fits.

ELPRESS C-sleeves

6 C6-10

10 C6-10 C6-10
16 C6-10 C6-10 C16-25
C16-25
25 C16-25 C16-25 C16-25
C25-50
35 C25-50 C25-50 C25-50 C25-50 C25-50 C25-50*
MAIN CONDUCTOR 70 C50-70 C50-70 C50-70 C50-70 C70-95*
50
C25-50
C25-50
C25-50
C50-70
C70-95
C50-70
95
C50-70
C70-95
C50-70
C70-95
C95-120
120
C70-95
C95-120
C95-120
C70-95
C70-95
C95-120
150 C95-120 C95-120 C95-120 C70-95* C150-185 C150-185 C150-185
C95-120
185 C95-120 C95-120 C95-120 C150-185 C150-185 C150-185 C150-185 C150-185
240 C150-185 C150-185 C150-185 C150-185 C150-185 C150-185 C150-185 C150-185** C240-300
300 C150-185 C150-185 C150-185 C150-185 C150-185 C150-185 C240-300 C240-300 C240-300 C23
6 10 16 25 35 50 70 95 120 150 185 240 300
mm² BRANCH
* Side feed only Reference list, see next page
** For Front feed with uncompressed conductors, use C240-300
