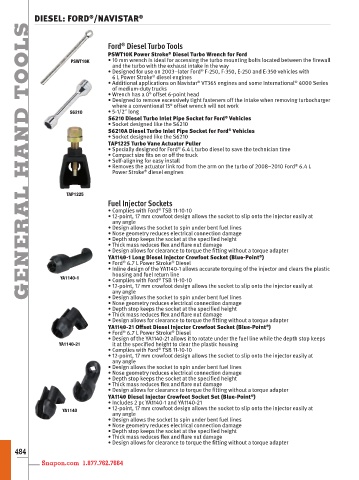

TOOLS DIESEL: FORD /NAVISTAR ® ® ® ®
®

®
Ford Diesel Turbo Tools
PSWT10K Power Stroke Diesel Turbo Wrench for Ford
• 10 mm wrench is ideal for accessing the turbo mounting bolts located between the firewall
PSWT10K
and the turbo with the exhaust intake in the way
• Designed for use on 2003–later Ford F-250, F-350, E-250 and E-350 vehicles with
6 L Power Stroke diesel engines
®
• Additional applications on Navistar VT365 engines and some International 4000 Series
®
of medium-duty trucks
• Wrench has a 0° offset 6-point head
• Designed to remove excessively tight fasteners off the intake when removing turbocharger
where a conventional 15° offset wrench will not work
HAND • Socket designed like the S6210 ® ®
• 5-1/2ʺ long
S6210
S6210 Diesel Turbo Inlet Pipe Socket for Ford Vehicles
®
S6210A Diesel Turbo Inlet Pipe Socket for Ford Vehicles
• Socket designed like the S6210
TAP1225 Turbo Vane Actuator Puller
®
• Specially designed for Ford 6.4 L turbo diesel to save the technician time
• Compact size fits on or off the truck
• Self-aligning for easy install
• Removes the actuator link rod from the arm on the turbo of 2008–2010 Ford 6.4 L
®
GENERAL
TAP1225 Power Stroke diesel engines
Fuel Injector Sockets
• Complies with Ford TSB 11-10-10
®
• 12-point, 17 mm crowfoot design allows the socket to slip onto the injector easily at
any angle
• Design allows the socket to spin under bent fuel lines
• Nose geometry reduces electrical connection damage
• Depth stop keeps the socket at the specified height
• Thick mass reduces flex and flare nut damage
• Design allows for clearance to torque the fitting without a torque adapter
YA1140-1 Long Diesel Injector Crowfoot Socket (Blue-Point )
®
®
®
• Ford 6.7 L Power Stroke Diesel
• Inline design of the YA1140-1 allows accurate torquing of the injector and clears the plastic
housing and fuel return line
YA1140-1 ®
• Complies with Ford TSB 11-10-10
• 12-point, 17 mm crowfoot design allows the socket to slip onto the injector easily at
any angle
• Design allows the socket to spin under bent fuel lines
• Nose geometry reduces electrical connection damage
• Depth stop keeps the socket at the specified height
• Thick mass reduces flex and flare nut damage
• Design allows for clearance to torque the fitting without a torque adapter
®
YA1140-21 Offset Diesel Injector Crowfoot Socket (Blue-Point )
®
• Ford 6.7 L Power Stroke Diesel
®
• Design of the YA1140-21 allows it to rotate under the fuel line while the depth stop keeps
YA1140-21 it at the specified height to clear the plastic housing
®
• Complies with Ford TSB 11-10-10
• 12-point, 17 mm crowfoot design allows the socket to slip onto the injector easily at
any angle
• Design allows the socket to spin under bent fuel lines
• Nose geometry reduces electrical connection damage
• Depth stop keeps the socket at the specified height
• Thick mass reduces flex and flare nut damage
• Design allows for clearance to torque the fitting without a torque adapter
YA1140 Diesel Injector Crowfoot Socket Set (Blue-Point )
®
• Includes 2 pc YA1140-1 and YA1140-21
• 12-point, 17 mm crowfoot design allows the socket to slip onto the injector easily at
YA1140
any angle
• Design allows the socket to spin under bent fuel lines
• Nose geometry reduces electrical connection damage
• Depth stop keeps the socket at the specified height
• Thick mass reduces flex and flare nut damage
• Design allows for clearance to torque the fitting without a torque adapter
484
Snapon.com 1.877.762.7664
