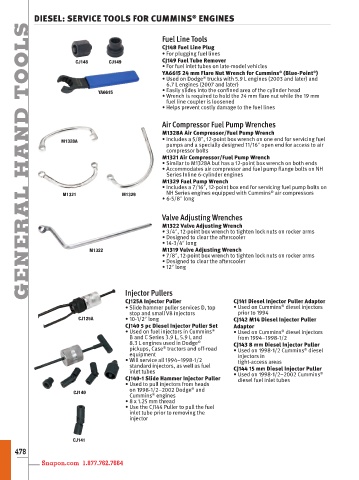

TOOLS DIESEL: SERVICE TOOLS FOR CUMMINS ENGINES ® ®
®

Fuel Line Tools
CJ148 Fuel Line Plug
• For plugging fuel lines
CJ149 Fuel Tube Remover
CJ149
CJ148
• For fuel inlet tubes on late-model vehicles
YA6615 24 mm Flare Nut Wrench for Cummins (Blue-Point )
• Used on Dodge trucks with 5.9 L engines (2003 and later) and
®
6.7 L engines (2007 and later)
• Easily slides into the confined area of the cylinder head
YA6615
• Wrench is required to hold the 24 mm flare nut while the 19 mm
fuel line coupler is loosened
• Helps prevent costly damage to the fuel lines
HAND M1328A M1328A Air Compressor/Fuel Pump Wrench
Air Compressor Fuel Pump Wrenches
• Includes a 5/8ʺ, 12-point box wrench on one end for servicing fuel
pumps and a specially designed 11/16ʺ open end for access to air
compressor bolts
M1321 Air Compressor/Fuel Pump Wrench
• Similar to M1328A but has a 12-point box wrench on both ends
• Accommodates air compressor and fuel pump flange bolts on NH
Series Inline 6-cylinder engines
M1329 Fuel Pump Wrench
• Includes a 7/16ʺ, 12-point box end for servicing fuel pump bolts on
GENERAL
®
M1321 M1329 NH Series engines equipped with Cummins air compressors
• 6-5/8ʺ long
Valve Adjusting Wrenches
M1322 Valve Adjusting Wrench
• 3/4ʺ, 12-point box wrench to tighten lock nuts on rocker arms
• Designed to clear the aftercooler
• 14-3/4ʺ long
M1322 M1319 Valve Adjusting Wrench
• 7/8ʺ, 12-point box wrench to tighten lock nuts on rocker arms
• Designed to clear the aftercooler
• 12ʺ long

Injector Pullers
CJ125A Injector Puller CJ141 Diesel Injector Puller Adaptor
®
• Slide hammer puller services D, top • Used on Cummins diesel injectors
stop and small V8 injectors prior to 1994
CJ125A • 10-1/2ʺ long CJ142 M14 Diesel Injector Puller
CJ140 5 pc Diesel Injector Puller Set Adaptor
®
• Used on fuel injectors in Cummins • Used on Cummins diesel injectors
®
B and C Series 3.9 L, 5.9 L and from 1994–1998-1/2
®
8.3 L engines used in Dodge CJ143 8 mm Diesel Injector Puller
pickups, Case tractors and off-road • Used on 1998-1/2 Cummins diesel
®
®
equipment injectors in
• Will service all 1994–1998-1/2 tight-access areas
standard injectors, as well as fuel
inlet tubes CJ144 15 mm Diesel Injector Puller ®
• Used on 1998-1/2–2002 Cummins
CJ140-1 Slide Hammer Injector Puller diesel fuel inlet tubes
• Used to pull injectors from heads
®
on 1998-1/2–2002 Dodge and
CJ140
®
Cummins engines
• 8 x 1.25 mm thread
• Use the CJ144 Puller to pull the fuel
inlet tube prior to removing the
injector
CJ141
