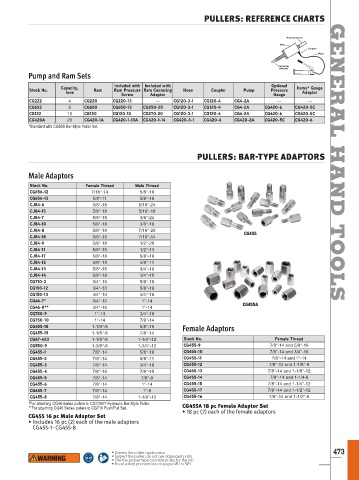

PULLERS: REFERENCE CHARTS

Pump and Ram Sets
Included with Included with Optional GENERAL
Capacity, Items* Gauge
Stock No. Ram Ram Pressure Ram Centering Hose Coupler Pump Pressure
tons Adaptor
Screw Adaptor Gauge
CG222 4 CG220 CG220-13 — CG120-3-1 CG120-4 CG4-2A — —
CG652 6 CG650 CG650-13 CG250-20 CG120-3-1 CG120-4 CG4-2A CG420-6 CG420-5C
CG122 10 CG120 CG120-13 CG270-20 CG120-3-1 CG120-4 CG4-2A CG420-6 CG420-5C
CG420A 20 CG420-1A CG420-1-13A CG420-1-14 CG420-3-1 CG420-4 CG420-2A CG420-5C CG420-6
*Standard with CG559 Bar-Style Puller Set.

PULLERS: BAR-TYPE ADAPTORS

Male Adaptors HAND

Stock No. Female Thread Male Thread
CG656-12 7/16ʺ-14 5/8ʺ-18
CG656-13 5/8ʺ-11 5/8ʺ-18
CJ84-6 5/8ʺ-18 5/16ʺ-24
CJ84-15 5/8ʺ-18 5/16ʺ-18
CJ84-7 5/8ʺ-18 3/8ʺ-24
CJ84-10 5/8ʺ-18 3/8ʺ-16
CJ84-8 5/8ʺ-18 7/16ʺ-20
CG455
CJ84-18 5/8ʺ-18 7/16ʺ-14
CJ84-9 5/8ʺ-18 1/2ʺ-20
CJ84-11 5/8ʺ-18 1/2ʺ-13
CJ84-17 5/8ʺ-18 5/8ʺ-18
CJ84-12 5/8ʺ-18 5/8ʺ-11 TOOLS
CJ84-13 5/8ʺ-18 3/4ʺ-16
CJ84-14 5/8ʺ-18 3/4ʺ-10
CG710-3 3/4ʺ-16 5/8ʺ-18
CG150-12 3/4ʺ-10 5/8ʺ-18
CG150-13 3/4ʺ-10 3/4ʺ-16
CG46-7* 3/4ʺ-10 1ʺ-14
CG455A
CG46-8** 3/4ʺ-16 1ʺ-14
CG750-9 1ʺ-14 3/4ʺ-16
CG750-10 1ʺ-14 7/8ʺ-14
CG455-18 1-1/8ʺ-8 5/8ʺ-18 Female Adaptors
CG455-19 1-1/8ʺ-8 7/8ʺ-14
CG47-420 1-1/8ʺ-8 1-1/4ʺ-12 Stock No. Female Thread
CG550-9 1-3/8ʺ-6 1-3/4ʺ-12 CG455-9 7/8ʺ-14 and 5/8ʺ-18
CG455-1 7/8ʺ-14 5/8ʺ-18 CG455-10 7/8ʺ-14 and 3/4ʺ-16
CG455-2 7/8ʺ-14 5/8ʺ-11 CG455-11 7/8ʺ-14 and 1ʺ-14
CG455-3 7/8ʺ-14 3/4ʺ-16 CG455-12 7/8ʺ-14 and 1-1/8ʺ-8
CG455-4 7/8ʺ-14 7/8ʺ-10 CG455-13 7/8ʺ-14 and 1-1/8ʺ-12
CG455-5 7/8ʺ-14 7/8ʺ-9 CG455-14 7/8ʺ-14 and 1-1/4-8
CG455-6 7/8ʺ-14 1ʺ-14 CG455-15 7/8ʺ-14 and 1-1/4ʺ-12
CG455-7 7/8ʺ-14 1ʺ-8 CG455-17 7/8ʺ-14 and 1-1/2ʺ-12
CG455-8 7/8ʺ-14 1-1/8ʺ-12 CG455-16 7/8ʺ-14 and 1-1/2ʺ-8
*For attaching CG46 Series pullers to CG105HY Hydraulic Bar-Style Puller.
**For attaching CG46 Series pullers to CG710 Push/Pull Set. CG455A 18 pc Female Adaptor Set
• 18 pc (2) each of the female adaptors
CG455 16 pc Male Adaptor Set
• Includes 16 pc (2) each of the male adaptors
CG455-1–CG455-8

• Screen the puller application 473
• Inspect the puller, do not use damaged parts
• Use the proper type and size puller for the job
• Read safety precautions on pages W1 to W4
