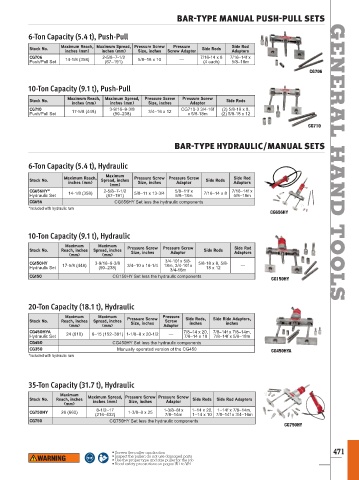

BAR-TYPE MANUAL PUSH-PULL SETS

6-Ton Capacity (5.4 t), Push-Pull
Maximum Reach, Maximum Spread, Pressure Screw Pressure Side Rod
Stock No. Side Rods
inches (mm) inches (mm) Size, inches Screw Adaptor Adaptors
CG706 14-1/8 (358) 2-5/8–7-1/2 5/8–18 x 10 — 7/16-14 x 8 7/16–14f x
Push/Pull Set (67–191) (4 each) 5/8–18m
CG706

10-Ton Capacity (9.1 t), Push-Pull GENERAL

Maximum Reach, Maximum Spread, Pressure Screw Pressure Screw
Stock No. Side Rods
inches (mm) inches (mm) Size, inches Adaptor
CG710 3-9/16–9-3/8 CG710-3 3/4-16f (2) 5/8-18 x 8,
Push/Pull Set 17-5/8 (448) (90–238) 3/4–16 x 12 x 5/8-18m (2) 5/8-18 x 12
CG710

BAR-TYPE HYDRAULIC/MANUAL SETS

6-Ton Capacity (5.4 t), Hydraulic

Maximum
Maximum Reach, Pressure Screw Pressure Screw Side Rod
Stock No. Spread, inches Side Rods HAND
inches (mm) Size, inches Adaptor Adaptors
(mm)
CG656HY* 2-5/8–7-1/2 5/8–11f x 7/16–14f x
Hydraulic Set 14-1/8 (358) (67–191) 5/8–11 x 13-3/4 5/8–18m 7/16–14 x 8 5/8–18m
CG656 CG656HY Set less the hydraulic components
*Included with hydraulic ram
CG656HY
10-Ton Capacity (9.1 t), Hydraulic
Maximum Maximum
Stock No. Reach, inches Spread, inches Pressure Screw Pressure Screw Side Rods Side Rod
(mm) (mm) Size, inches Adaptor Adaptors
3/4-10f x 5/8-
CG150HY 3-9/16–9-3/8 5/8-18 x 8, 5/8- TOOLS
Hydraulic Set 17-5/8 (448) (90–238) 3/4–10 x 16-1/4 18m, 3/4-10f x 18 x 12 —
3/4-16m
CG150 CG150HY Set less the hydraulic components
CG150HY

20-Ton Capacity (18.1 t), Hydraulic
Maximum Maximum Pressure Screw Pressure Side Rods, Side Ride Adaptors,
Stock No. Reach, inches Spread, inches Size, inches Screw inches inches
(mm) (mm) Adaptor
CG450HYA 7/8–14 x 20, 7/8–14f x 7/8–14m,
Hydraulic Set 24 (610) 6–15 (152–381) 1-1/8–8 x 20-1/2 — 7/8–14 x 10 7/8–14f x 5/8–18m
CG450 CG450HY Set less the hydraulic components
CG350 Manually operated version of the CG450
CG450HYA
*Included with hydraulic ram

35-Ton Capacity (31.7 t), Hydraulic
Maximum
Stock No. Reach, inches Maximum Spread, Pressure Screw Pressure Screw Side Rods Side Rod Adaptors
(mm) inches (mm) Size, inches Adaptor
8-1/2–17
CG750HY 26 (660) (216–432) 1-3/8–8 x 25 1-3/8–8f x 1–14 x 20, 1–14f x 7/8–14m,
1–14 x 10 7/8–14f x 3/4–16m
7/8–14m
CG750 CG750HY Set less the hydraulic components
CG750HY

• Screen the puller application 471
• Inspect the puller; do not use damaged parts
• Use the proper type and size puller for the job
