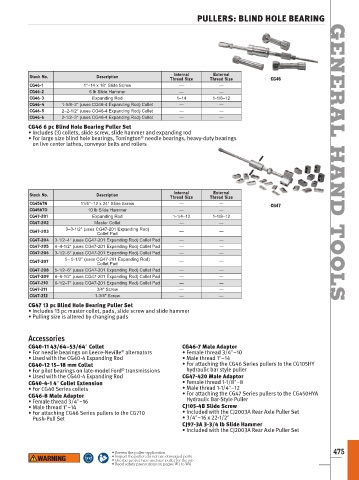

PULLERS: BLIND HOLE BEARING

Internal External
Stock No. Description
Thread Size Thread Size CG46 GENERAL
CG46-1 1ʺ–14 x 18ʺ Slide Screw — —
CG46-2 6 lb Slide Hammer — —
CG46-3 Expanding Rod 1–14 1-1/8–12
CG46-4 1-5/8–2ʺ (uses CG46-4 Expanding Rod) Collet — —
CG46-5 2–2-1/2ʺ (uses CG46-4 Expanding Rod) Collet — —
CG46-6 2-1/2–3ʺ (uses CG46-4 Expanding Rod) Collet — —
CG46 6 pc Blind Hole Bearing Puller Set
• Includes (3) collets, slide screw, slide hammer and expanding rod
• For large size blind hole bearings, Torrington needle bearings, heavy-duty bearings
®
on live center lathes, conveyor belts and rollers

Internal External HAND
Stock No. Description
Thread Size Thread Size
CG4567N 11/4ʺ–12 x 24ʺ Slide Screw — —
CG47
CG4567O 10 lb Slide Hammer — —
CG47-201 Expanding Rod 1-1/4–12 1-1/8–12
CG47-202 Master Collet — —
3–3-1/2ʺ (uses CG47-201 Expanding Rod)
CG47-203 Collet Pad — —
CG47-204 3-1/2–4ʺ (uses CG47-201 Expanding Rod) Collet Pad — —
CG47-205 4–4-1/2ʺ (uses CG47-201 Expanding Rod) Collet Pad — —
CG47-206 3-1/2–5ʺ (uses CG47-201 Expanding Rod) Collet Pad — —
5– 5-1/2ʺ (uses CG47-201 Expanding Rod)
CG47-207 — — TOOLS
Collet Pad
CG47-208 5-1/2–6ʺ (uses CG47-201 Expanding Rod) Collet Pad — —
CG47-209 6–6-1/2ʺ (uses CG47-201 Expanding Rod) Collet Pad — —
CG47-210 6-1/2–7ʺ (uses CG47-201 Expanding Rod) Collet Pad — —
CG47-211 3/4ʺ Screw — —
CG47-212 1-3/4ʺ Screw — —
CG47 13 pc Blind Hole Bearing Puller Set
• Includes 13 pc master collet, pads, slide screw and slide hammer
• Pulling size is altered by changing pads

Accessories
CG40-11 43/64–53/64ʺ Collet CG46-7 Male Adaptor
• For needle bearings on Leece-Neville alternators • Female thread 3/4ʺ–10
®
• Used with the CG40-4 Expanding Rod • Male thread 1ʺ–14
CG40-12 15–18 mm Collet • For attaching the CG46 Series pullers to the CG105HY
• For pilot bearings on late-model Ford transmissions hydraulic bar style puller
®
• Used with the CG40-4 Expanding Rod CG47-420 Male Adaptor
CG40-4-1 4ʺ Collet Extension • Female thread 1-1/8ʺ–8
• For CG40 Series collets • Male thread 1-1/4ʺ–12
CG46-8 Male Adaptor • For attaching the CG47 Series pullers to the CG450HYA
• Female thread 3/4ʺ–16 Hydraulic Bar-Style Puller
• Male thread 1ʺ–14 CJ105-4B Slide Screw
• For attaching CG46 Series pullers to the CG710 • Included with the CJ2003A Rear Axle Puller Set
Push-Pull Set • 3/4ʺ–16 x 22-1/2ʺ
CJ97-3A 3-3/4 lb Slide Hammer
• Included with the CJ2003A Rear Axle Puller Set

• Screen the puller application 475
• Inspect the puller; do not use damaged parts
• Use the proper type and size puller for the job
• Read safety precautions on pages W1 to W4
