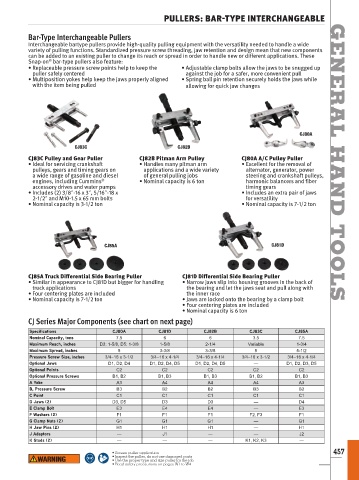

PULLERS: BAR-TYPE INTERCHANGEABLE

Bar-Type Interchangeable Pullers
Interchangeable bartype pullers provide high-quality pulling equipment with the versatility needed to handle a wide
variety of pulling functions. Standardized pressure screw threading, jaw retention and design mean that new components
can be added to an existing puller to change its reach or spread in order to handle new or different applications. These
®
Snap-on bar-type pullers also feature:
• Replaceable pressure screw points help to keep the • Adjustable clamp bolts allow the jaws to be snugged up
puller safely centered against the job for a safer, more convenient pull
• Multiposition yokes help keep the jaws properly aligned • Spring ball pin retention securely holds the jaws while GENERAL
with the item being pulled allowing for quick jaw changes

CJ80A

CJ83C CJ82B
CJ83C Pulley and Gear Puller CJ82B Pitman Arm Pulley CJ80A A/C Pulley Puller
• Ideal for servicing crankshaft • Handles many pitman arm • Excellent for the removal of
pulleys, gears and timing gears on applications and a wide variety alternator, generator, power
a wide range of gasoline and diesel of general pulling jobs steering and crankshaft pulleys,
®
engines, including Cummins • Nominal capacity is 6 ton harmonic balancers and fiber HAND
accessory drives and water pumps timing gears
• Includes (2) 3/8ʺ-16 x 3ʺ, 5/16ʺ-18 x • Includes an extra pair of jaws
2-1/2ʺ and M10-1.5 x 65 mm bolts for versatility
• Nominal capacity is 3-1/2 ton • Nominal capacity is 7-1/2 ton

CJ85A CJ81D

CJ85A Truck Differential Side Bearing Puller CJ81D Differential Side Bearing Puller TOOLS
• Similar in appearance to CJ81D but bigger for handling • Narrow jaws slip into housing grooves in the back of
truck applications the bearing and let the jaws seat and pull along with
• Four centering plates are included the inner race
• Nominal capacity is 7-1/2 ton • Jaws are locked onto the bearing by a clamp bolt
• Four centering plates are included
• Nominal capacity is 6 ton
CJ Series Major Components (see chart on next page)
Specifications CJ80A CJ81D CJ82B CJ83C CJ85A
Nominal Capacity, tons 7.5 6 6 3.5 7.5
Maximum Reach, inches D3: 1-5/8, D5: 1-3/8 1-5/8 2-1/4 Variable 1-3/4
Maximum Spread, inches 5 3-3/8 3-3/8 5 5-1/2
Pressure Screw Size, inches 3/4–16 x 3-1/2 3/4–16 x 4-1/4 3/4–16 x 4-1/4 3/4–16 x 3-1/2 3/4–16 x 4-1/4
Optional Jaws D1, D2, D4 D1, D2, D4, D5 D1, D2, D4, D5 — D1, D2, D3, D5
Optional Points C2 C2 C2 C2 C2
Optional Pressure Screws B1, B2 B1, B3 B1, B3 B1, B2 B1, B3
A Yoke A3 A4 A4 A4 A3
B, Pressure Screw B3 B2 B2 B3 B2
C Point C1 C1 C1 C1 C1
D Jaws (2) D3, D5 D3 D3 — D4
E Clamp Bolt E3 E4 E4 — E3
F Washers (2) F1 F1 F1 F2, F3 F1
G Clamp Nuts (2) G1 G1 G1 — G1
H Jaw Pins (2) H1 H1 H1 — H1
J Adaptors — J1 — — J2
K Studs (2) — — — K1, K2, K3 —
• Screen puller application 457
• Inspect the puller, do not use damaged parts
• Use the proper type and size puller for the job
• Read safety precautions on pages W1 to W4
