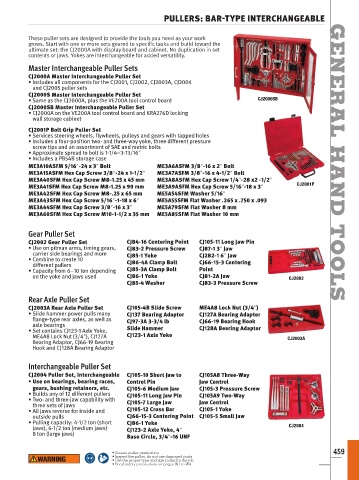

PULLERS: BAR-TYPE INTERCHANGEABLE
These puller sets are designed to provide the tools you need as your work
grows. Start with one or more sets geared to specific tasks and build toward the
ultimate set: the CJ2000A with display board and cabinet. No duplication in set
contents or jaws. Yokes are interchangeable for added versatility.
Master Interchangeable Puller Sets
CJ2000A Master Interchangeable Puller Set
• Includes all components for the CJ2001, CJ2002, CJ2003A, CJ2004 GENERAL
and CJ2005 puller sets
CJ2000S Master Interchangeable Puller Set
• Same as the CJ2000A, plus the VE200A tool control board CJ2000SB
CJ2000SB Master Interchangeable Puller Set
• CJ2000A on the VE200A tool control board and KRA276D locking
wall storage cabinet
CJ2001P Bolt Grip Puller Set
• Services steering wheels, flywheels, pulleys and gears with tapped holes
• Includes a four-position two- and three-way yoke, three different pressure
screw tips and an assortment of SAE and metric bolts
• Approximate spread to bolt is 1-1/4–3-13/16ʺ
• Includes a PB54B storage case
ME3A10ASFM 5/16ʺ-24 x 3ʺ Bolt ME3A6ASFM 3/8ʺ-16 x 2ʺ Bolt
ME3A15ASFM Hex Cap Screw 3/8ʺ-24 x 1-1/2ʺ ME3A7ASFM 3/8ʺ-16 x 4-1/2ʺ Bolt
ME3A40SFM Hex Cap Screw M8-1.25 x 45 mm ME3A8ASFM Hex Cap Screw 1/4ʺ-28 x2 -1/2ʺ HAND
ME3A41SFM Hex Cap Screw M8-1.25 x 90 mm ME3A9ASFM Hex Cap Screw 5/16ʺ-18 x 3ʺ CJ2001P
ME3A42SFM Hex Cap Screw M8-.25 x 65 mm ME5A54SFM Washer 5/16ʺ
ME3A43SFM Hex Cap Screw 5/16ʺ-1-18 x 6ʺ ME5A55SFM Flat Washer .265 x .750 x .093
ME3A44SFM Hex Cap Screw 3/8ʺ-16 x 3ʺ ME5A79SFM Flat Washer 8 mm
ME3A60SFM Hex Cap Screw M10-1-1/2 x 35 mm ME5A85SFM Flat Washer 10 mm
Gear Puller Set
CJ2002 Gear Puller Set CJ84-16 Centering Point CJ105-11 Long Jaw Pin
• Use on pitman arms, timing gears, CJ83-2 Pressure Screw CJ87-1 3ʺ Jaw
carrier side bearings and more CJ85-1 Yoke CJ282-1 6ʺ Jaw
• Combine to create 10 CJ86-4A Clamp Bolt CJ66-15-3 Centering TOOLS
different pullers
• Capacity from 6–10 ton depending CJ85-3A Clamp Bolt Point
on the yoke and jaws used CJ86-1 Yoke CJ81-2A Jaw CJ2002
CJ85-4 Washer CJ83-3 Pressure Screw
Rear Axle Puller Set
CJ2003A Rear Axle Puller Set CJ105-4B Slide Screw ME4A8 Lock Nut (3/4ʺ)
• Slide hammer power pulls many CJ137 Bearing Adaptor CJ127A Bearing Adaptor
flange-type rear axles, as well as CJ97-3A 3-3/4 lb CJ66-19 Bearing Hook
axle bearings
• Set contains CJ123-1 Axle Yoke, Slide Hammer CJ128A Bearing Adaptor
ME4A8 Lock Nut (3/4ʺ), CJ127A CJ123-1 Axle Yoke CJ2003A
Bearing Adaptor, CJ66-19 Bearing
Hook and CJ128A Bearing Adaptor
Interchangeable Puller Set
CJ2004 Puller Set, Interchangeable CJ105-10 Short Jaw to CJ105A8 Three-Way
• Use on bearings, bearing races, Control Pin Jaw Control
gears, bushing retainers, etc. CJ105-6 Medium Jaw CJ105-3 Pressure Screw
• Builds any of 12 different pullers CJ105-11 Long Jaw Pin CJ105A9 Two-Way
• Two- and three-jaw capability with
three sets of jaws CJ105-7 Large Jaw Jaw Control
• All jaws reverse for inside and CJ105-12 Cross Bar CJ105-1 Yoke
outside pulls CJ66-15-3 Centering Point CJ105-5 Small Jaw
• Pulling capacity: 4-1/2 ton (short CJ86-1 Yoke
jaws), 6-1/2 ton (medium jaws) CJ123-2 Axle Yoke, 4ʺ CJ2004
8 ton (large jaws)
Base Circle, 3/4ʺ-16 UNF
• Screen puller application 459
• Inspect the puller, do not use damaged parts
• Use the proper type and size puller for the job
• Read safety precautions on pages W1 to W4
