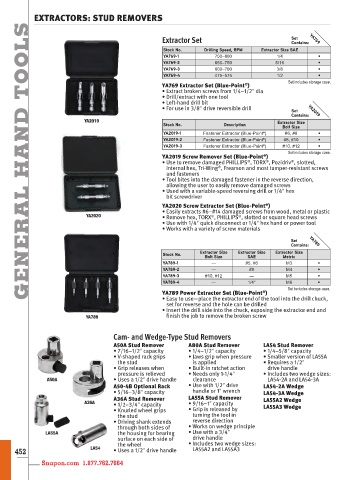

EXTRACTORS: STUD REMOVERS Set
TOOLS Extractor Set Drilling Speed, RPM Extractor Size SAE YA769

Contains:
Stock No.
1/4
700–800
YA769-1
•
650–750
5/16
YA769-2
•
3/8
600–700
YA769-3
•
1/2
475–575
YA769-4
•

Set includes storage case.
YA769 Extractor Set (Blue-Point )
• Extract broken screws from 1/4–1/2ʺ dia
• Drill/extract with one tool
• Left-hand drill bit ® Extractor Size YA2019
• For use in 3/8ʺ drive reversible drill
HAND YA2019 Screw Remover Set (Blue-Point ) ® Bolt Size • • •
Set
Contains:
YA2019
Stock No.
Description
#6, #8
Fastener Extractor (Blue-Point )
®
YA2019-1
Fastener Extractor (Blue-Point )
®
#8, #10
YA2019-2
®
Fastener Extractor (Blue-Point )
#10, #12
YA2019-3
Set includes storage case.
®
• Use to remove damaged PHILLIPS , TORX , Pozidriv , slotted,
®
®
internal hex, Tri-Wing , Frearson and most tamper-resistant screws
®
and fasteners
• Tool bites into the damaged fastener in the reverse direction,
allowing the user to easily remove damaged screws
GENERAL
• Used with a variable-speed reversing drill or 1/4ʺ hex
bit screwdriver
®
YA2020 Screw Extractor Set (Blue-Point )
• Easily extracts #6–#14 damaged screws from wood, metal or plastic
YA2020 • Remove hex, TORX , PHILLIPS , slotted or square head screws
®
®
• Use with 1/4ʺ quick disconnect or 1/4ʺ hex hand or power tool
• Works with a variety of screw materials
Set YA789
Contains:
Extractor Size Extractor Size Extractor Size
Stock No.
Bolt Size SAE Metric
YA789-1 — #5, #6 M3 •
YA789-2 — #8 M4 •
YA789-3 #10, #12 — M5 •
YA789-4 — 1/4ʺ M6 •
Set includes storage case.
YA789 Power Extractor Set (Blue-Point )
®
• Easy to use—place the extractor end of the tool into the drill chuck,
set for reverse and the hole can be drilled
• Insert the drill side into the chuck, exposing the extractor end and
YA789 finish the job to remove the broken screw
Cam- and Wedge-Type Stud Removers
A50A Stud Remover A80A Stud Remover LA54 Stud Remover
• 7/16–1/2ʺ capacity • 1/4–1/2ʺ capacity • 1/4–5/8ʺ capacity
• V-shaped rack grips • Jaws grip when pressure • Smaller version of LA55A
the stud is applied • Requires a 1/2ʺ
• Grip releases when • Built-in ratchet action drive handle
pressure is relieved • Needs only 1-1/4ʺ • Includes two wedge sizes:
A50A • Uses a 1/2ʺ drive handle clearance LA54-2A and LA54-3A
A50-4B Optional Rack • Use with 1/2ʺ drive LA54-2A Wedge
• 5/16–3/8ʺ capacity handle or 1ʺ wrench LA54-3A Wedge
A36A Stud Remover LA55A Stud Remover LA55A2 Wedge
A36A
• 1/2–3/4ʺ capacity • 9/16–1ʺ capacity LA55A3 Wedge
• Knurled wheel grips • Grip is released by
the stud turning the tool in
• Driving shank extends reverse direction
through both sides of • Works on wedge principle
LA55A the housing for bearing • Use with a 3/4ʺ
surface on each side of drive handle
the wheel • Includes two wedge sizes:
LA54
452 • Uses a 1/2ʺ drive handle LA55A2 and LA55A3
