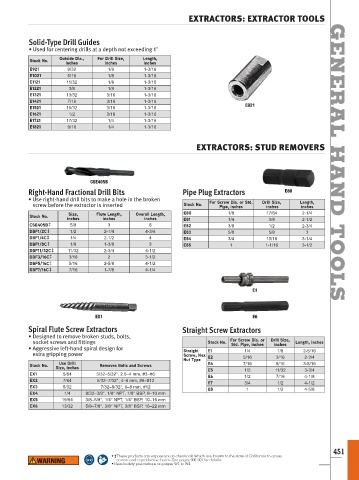

EXTRACTORS: EXTRACTOR TOOLS

Solid-Type Drill Guides
• Used for centering drills at a depth not exceeding 1ʺ
Outside Dia., For Drill Size, Length,
Stock No.
inches inches inches
E921 9/32 1/8 1-3/16
E1021 5/16 1/8 1-3/16
E1121 11/32 1/8 1-3/16 GENERAL
E1221 3/8 1/8 1-3/16
E1321 13/32 3/16 1-3/16
E1421 7/16 3/16 1-3/16
E921
E1521 15/32 3/16 1-3/16
E1621 1/2 3/16 1-3/16
E1721 17/32 1/4 1-3/16
E1821 9/16 1/4 1-3/16

EXTRACTORS: STUD REMOVERS

CSE405B HAND
Right-Hand Fractional Drill Bits Pipe Plug Extractors E80
• Use right-hand drill bits to make a hole in the broken For Screw Dia. or Std. Drill Size, Length,
screw before the extractor is inserted Stock No. Pipe, inches inches inches
Size, Flute Length, Overall Length, E80 1/8 17/64 2-1/4
Stock No.
inches inches inches E81 1/4 3/8 2-1/2
CSE405B ‡ 5/8 3 6 E82 3/8 1/2 2-3/4
DBF1/2C ‡ 1/2 2-1/4 4-3/4 E83 5/8 5/8 3
DBF1/4C ‡ 1/4 2-1/2 4 E84 3/4 13/16 3-1/4
DBF1/8C ‡ 1/8 1-3/8 3 E85 1 1-1/16 3-1/2
DBF11/32C ‡ 11/32 2-3/4 4-1/2
DBF3/16C ‡ 3/16 2 3-1/2
DBF5/16C ‡ 5/16 2-5/8 4-1/2 TOOLS
DBF7/16C ‡ 7/16 1-7/8 4-1/4

E1

EX1 E6

Spiral Flute Screw Extractors Straight Screw Extractors
• Designed to remove broken studs, bolts,
socket screws and fittings Stock No. For Screw Dia. or Drill Size, Length, inches
inches
Std. Pipe, inches
• Aggressive left-hand spiral design for Straight E1 1/4 1/8 2-5/16
extra gripping power Screw, Hex E2 5/16 3/16 2-3/4
Nut Type
Use Drill E4 7/16 5/16 3-5/16
Stock No. Removes Bolts and Screws
Size, inches E5 1/2 11/32 3-3/4
EX1 5/64 3/32–5/32ʺ, 2.5–4 mm, #3–#6 E6 1/2 7/16 4-1/8
EX2 7/64 5/32–7/32ʺ, 4–6 mm, #6–#12 E7 3/4 1/2 4-1/2
EX3 5/32 7/32–9/32ʺ, 6–8 mm, #12
E8 1 1/2 4-5/8
EX4 1/4 9/32–3/8ʺ, 1/8ʺ NPT, 1/8ʺ BSP, 8–10 mm
EX5 19/64 3/8–5/8ʺ, 1/4ʺ NPT, 1/4ʺ BSP, 10–16 mm
EX6 13/32 5/8–7/8ʺ, 3/8ʺ NPT, 3/8ʺ BSP, 16–22 mm

451
• ‡ These products can expose you to chemicals which are known to the state of California to cause
cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
