TORQUE MEASUREMENT

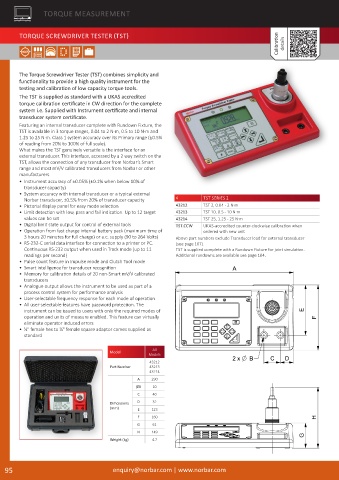

TORQUE SCREWDRIVER TESTER (TST)
Calibration details

The Torque Screwdriver Tester (TST) combines simplicity and
functionality to provide a high quality instrument for the
testing and calibration of low capacity torque tools.
The TST is supplied as standard with a UKAS accredited
torque calibration certificate in CW direction for the complete
system i.e. Supplied with Instrument certificate and internal
transducer system certificate.
Featuring an internal transducer complete with Rundown Fixture, the
TST is available in 3 torque ranges, 0.04 to 2 N�m, 0.5 to 10 N�m and
1.25 to 25 N�m. Class 1 system accuracy over its Primary range (±0.5%
of reading from 20% to 100% of full scale).
What makes the TST genuinely versatile is the interface for an
external transducer. This interface, accessed by a 2 way switch on the
TST, allows the connection of any transducer from Norbar’s Smart
range and most mV/V calibrated transducers from Norbar or other
manufacturers.
• Instrument accuracy of ±0.05% (±0.1% when below 10% of
transducer capacity)
• System accuracy with internal transducer or a typical external
Norbar transducer, ±0.5% from 20% of transducer capacity 4 TST SERIES 2
• Pictorial display panel for easy mode selection 43212 TST 2, 0.04 - 2 N�m
• Limit detection with low, pass and fail indication. Up to 12 target 43213 TST 10, 0.5 - 10 N�m
values can be set 43214 TST 25, 1.25 - 25 N�m
• Digital limit state output for control of external tools TST�CCW UKAS-accredited counter-clockwise calibration when
• Operation from fast charge internal battery pack (maximum time of ordered with new unit
3 hours 20 minutes for full charge) or a.c. supply (90 to 264 Volts) Above part numbers exclude Transducer lead for external transducer
• RS-232-C serial data interface for connection to a printer or PC. (see page 107)�
Continuous RS-232 output when used in Track mode (up to 11 TST is supplied complete with a Rundown Fixture for joint simulation.
readings per second) Additional rundowns are available see page 104.
• Pulse count feature in Impulse mode and Clutch Tool mode
• Smart intelligence for transducer recognition
• Memory for calibration details of 20 non-Smart mV/V calibrated
transducers
• Analogue output allows the instrument to be used as part of a
process control system for performance analysis
• User-selectable frequency response for each mode of operation
• All user-selectable features have password protection. The
instrument can be issued to users with only the required modes of
operation and units of measure enabled. This feature can virtually
eliminate operator induced errors
• 1/4" female hex to 1/4" female square adaptor comes supplied as
standard

Model All
Models
43212
Part Number 43213
43214
A 290
ØB 10
C 40
Dimensions D 32
(mm) E 123
F 160
G 61
H 149
Weight (kg) 4�7
