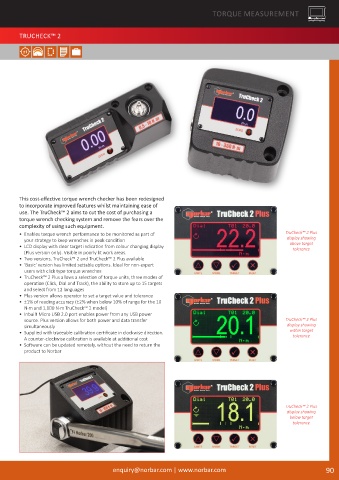

TORQUE MEASUREMENT

TRUCHECK™ 2

This cost-effective torque wrench checker has been redesigned
to incorporate improved features whilst maintaining ease of
use. The TruCheck™ 2 aims to cut the cost of purchasing a
torque wrench checking system and remove the fears over the
complexity of using such equipment.
• Enables torque wrench performance to be monitored as part of TruCheck™ 2 Plus
your strategy to keep wrenches in peak condition display showing
• LCD display with clear target indication from colour changing display above target
tolerance
(Plus version only)� Visible in poorly lit work areas�
• Two versions, TruCheck™ 2 and TruCheck™ 2 Plus available
• 'Basic' version has limited settable options. Ideal for non-expert
users with click type torque wrenches
• TruCheck™ 2 Plus allows a selection of torque units, three modes of
operation (Click, Dial and Track), the ability to store up to 15 targets
and select from 12 languages
• Plus version allows operator to set a target value and tolerance
• ±1% of reading accuracy (±2% when below 10% of range for the 10
N·m and 1,100 N·m TruCheck™ 2 model)
• Inbuilt Micro USB 2.0 port enables power from any USB power
source. Plus version allows for both power and data transfer TruCheck™ 2 Plus
simultaneously display showing
• Supplied with traceable calibration certificate in clockwise direction. within target
A counter-clockwise calibration is available at additional cost tolerance
• Software can be updated remotely, without the need to return the
product to Norbar

TruCheck™ 2 Plus
display showing
below target
tolerance

enquiry@norbar�com | www�norbar�com 90
