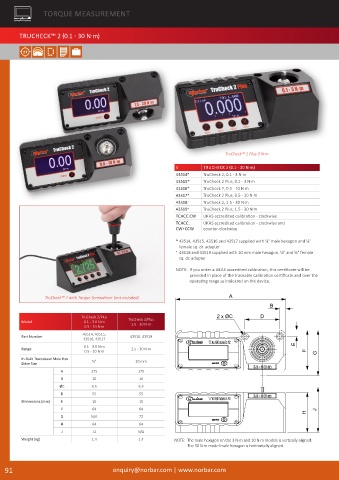

TORQUE MEASUREMENT

TRUCHECK™ 2 (0.1 - 30 N·m)

TruCheck™ 2 Plus 3 N·m

4 TRUCHECK 2 (0.1 - 30 N·m)
43514* TruCheck 2, 0.1 - 3 N�m
43515* TruCheck 2 Plus, 0.1 - 3 N�m
43516* TruCheck 2, 0.5 - 10 N·m
43517* TruCheck 2 Plus, 0.5 - 10 N·m
43518 + TruCheck 2, 1.5 - 30 N�m
43519 + TruCheck 2 Plus, 1.5 - 30 N�m
TCACC�CW UKAS accredited calibration - clockwise
TCACC� UKAS accredited calibration - clockwise and
CW+CCW counter-clockwise

* 43514, 43515, 43516 and 43517 supplied with ∕ 4" male hexagon and ∕ 4"
1
1

female sq. dr. adapter
+ 43518 and 43519 supplied with 10 mm male hexagon, ∕ 4" and ∕ 8" female
3
1
sq� dr� adapter
NOTE: If you order a UKAS accredited calibration, this certificate will be
provided in place of the traceable calibration certificate and over the
operating range as indicated on the device.
TruCheck™ 2 with Torque Screwdriver (not included) A
B

TruCheck 2/Plus 2 x ØC D
Model 0.1 - 3.0 N·m TruCheck 2/Plus
0.5 - 10 N·m 1.5 - 30 N·m
43514, 43515,
Part Number 43518, 43519
43516, 43517
0.1 - 3.0 N·m E
Range 1.5 - 30 N·m
0.5 - 10 N·m F
G
In-Built Transducer Male Hex
Drive Size 1/4" 10 mm
A 175 175
B 10 10
ØC 6.5 6.5
D 55 55
Dimensions (mm) E 10 10
F 64 64 J
H
G N/A 72
H 64 64
J 72 N/A
Weight (kg) 1�4 1�4 NOTE: The male hexagon on the 3 N·m and 10 N·m models is vertically aligned.
The 30 N·m model male hexagon is horizontally aligned.
