Reference Form Tester | Measuring Systems

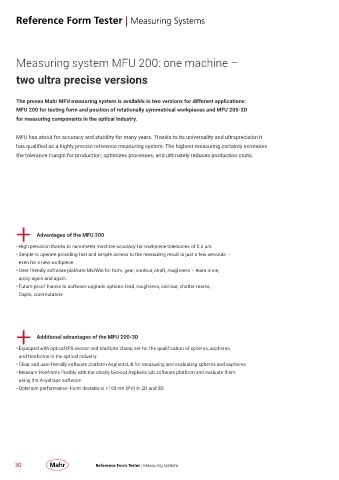

Measuring system MFU 200: one machine –

two ultra precise versions

The proven Mahr MFU measuring system is available in two versions for different applications:
MFU 200 for testing form and position of rotationally symmetrical workpieces and MFU 200-3D
for measuring components in the optical industry.

MFU has stood for accuracy and stability for many years. Thanks to its universality and ultraprecision it
has qualified as a highly precise reference measuring system. The highest measuring certainty increases
the tolerance margin for production, optimizes processes, and ultimately reduces production costs.

+ Advantages of the MFU 200

• High precision thanks to nanometer machine accuracy for workpiece tolerances of 0.5 µm
• Simple to operate providing fast and simple access to the measuring result in just a few seconds –
even for a new workpiece
• User-friendly software platform MarWin for form, gear, contour, shaft, roughness – learn once,
apply again and again.
• Future-proof thanks to software upgrade options: lead, roughness, contour, chatter marks,
Capto, commutators

+ Additional advantages of the MFU 200-3D

• Equipped with optical IPS sensor and MarOpto clamp set for the qualification of spheres, aspheres,
and freeforms in the optical industry
• Clear and user-friendly software platform AsphericLib for measuring and evaluating spheres and aspheres
• Measure freefroms flexibly with the clearly laid-out Aspheric Lib software platform and evaluate them
using the Anyshape software
• Optimum performance: Form deviations <100 nm (PV) in 2D and 3D

30 Reference Form Tester | Measuring Systems
