MarSurf | Surface Measuring Instruments

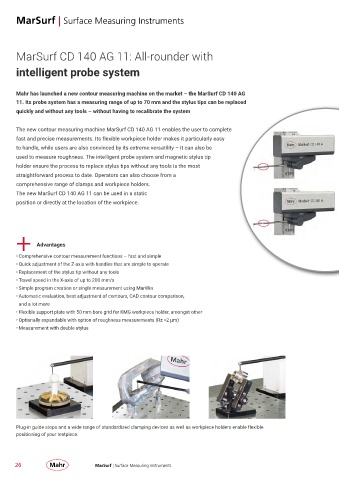

MarSurf CD 140 AG 11: All-rounder with

intelligent probe system

Mahr has launched a new contour measuring machine on the market – the MarSurf CD 140 AG
11. Its probe system has a measuring range of up to 70 mm and the stylus tips can be replaced
quickly and without any tools – without having to recalibrate the system

The new contour measuring machine MarSurf CD 140 AG 11 enables the user to complete
fast and precise measurements. Its flexible workpiece holder makes it particularly easy
to handle, while users are also convinced by its extreme versatility – it can also be
used to measure roughness. The intelligent probe system and magnetic stylus tip
holder ensure the process to replace stylus tips without any tools is the most
straightforward process to date. Operators can also choose from a
comprehensive range of clamps and workpiece holders.
The new MarSurf CD 140 AG 11 can be used in a static
position or directly at the location of the workpiece.

+ Advantages

• Comprehensive contour measurement functions – fast and simple
• Quick adjustment of the Z-axis with handles that are simple to operate
• Replacement of the stylus tip without any tools
• Travel speed in the X-axis of up to 200 mm/s
• Simple program creation or single measurement using MarWin
• Automatic evaluation, best adjustment of contours, CAD contour comparison,
and a lot more
• Flexible support plate with 50 mm bore grid for KMG workpiece holder, amongst other
• Optionally expandable with option of roughness measurements (Rz >2 µm)
• Measurement with double stylus

Plug-in guide stops and a wide range of standardized clamping devices as well as workpiece holders enable flexible
positioning of your testpiece.

26 MarSurf | Surface Measuring Instruments
