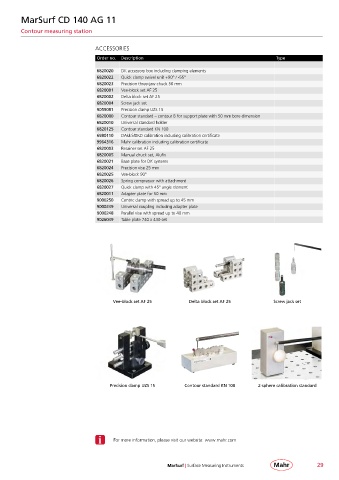

MarSurf CD 140 AG 11

Contour measuring station

ACCESSORIES
Order no. Description Type

6820020 DK accessory box including clamping elements
6820022 Quick clamp swivel unit +90° / -55°
6820023 Precision three-jaw chuck 50 mm
6820001 Vee-block set AF 25
6820002 Delta block set AF 25
6820004 Screw jack set
9059081 Precision clamp UZS 15
6820000 Contour standard – contour B for support plate with 50 mm bore dimension
6820010 Universal standard holder
6820125 Contour standard KN 100
6980110 DAkkS/DKD calibration including calibration certificate
9964316 Mahr calibration including calibration certificate
6820003 Retainer set AF 25
6820005 Manual chuck set, Alufix
6820021 Base plate for DK systems
6820024 Precision vise 25 mm
6820025 Vee-block 90°
6820026 Spring compressor with attachment
6820027 Quick clamp with 45° angle element
6820011 Adapter plate for 50 mm
9000250 Centric clamp with spread up to 45 mm
9000249 Universal coupling including adapter plate
9000248 Parallel vise with spread up to 40 mm
9026049 Table plate 740 x 430 set

Vee-block set AF 25 Delta block set AF 25 Screw jack set

Precision clamp UZS 15 Contour standard KN 100 2-sphere calibration standard

For more information, please visit our website: www.mahr.com

MarSurf | Surface Measuring Instruments 29
