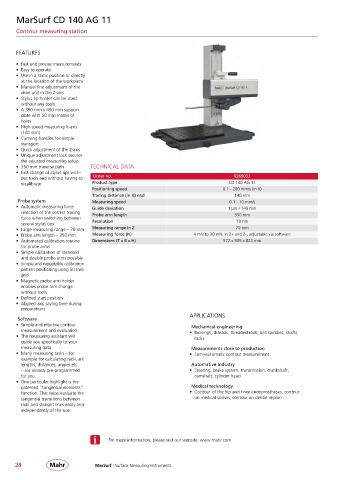

MarSurf CD 140 AG 11

Contour measuring station

FEATURES

• Fast and precise measurements
• Easy to operate
• Use in a static position or directly
at the location of the workpiece
• Manual fine adjustment of the
drive unit in the Z-axis
• Stylus tip holder can be used
without any tools
• A 390 mm x 450 mm support
plate with 50 mm matrix of
holes
• High-speed measuring X-axis
(140 mm)
• Carrying handles for simple
transport
• Quick adjustment of the Z-axis
• Unique adjustment lock secures
the adjusted measuring setup
• 350 mm traverse path TECHNICAL DATA
• Fast change of stylus tips with-
out tools and without having to Order no. 6269033
recalibrate Product type CD 140 AG 11
Positioning speed 0.1 - 200 mm/s (in X)
Tracing distance (in X) end 140 mm
Probe system Measuring speed 0.1 - 10 mm/s
• Automatic measuring force Guide deviation 1 µm / 140 mm
selection of the correct tracing Probe arm length 350 mm
force when switching between Resolution 19 nm
several stylus tips
• Large measuring range – 70 mm Measuring range in Z 70 mm
• Probe arm length – 350 mm Measuring force (N) 4 mN to 30 mN, in Z+ and Z-, adjustable via software
• Automated calibration routine Dimensions (T x B x H) 572 x 905 x 822 mm
for probe arms
• Simple calibration of standard
and double probe arms possible
• Simple and repeatable calibration
pattern positioning using 50 mm
grid
• Magnetic probe arm holder
enables probe arm change
without tools
• Defined start position
• Aligned axis saving time during
preparations
APPLICATIONS
Software
• Simple and intuitive contour Mechanical engineering
measurement and evaluation. • Bearings, threads, threaded rods, ball spindles, shafts,
• The measuring assistant will racks
guide you specifically to your
measuring data. Measurements close to production
• Many measuring tasks – for • Semi-automatic contour measurement
example for calculating radii, arc
lengths, distances, angles etc. Automative Industry
– are already pre-programmed • Steering, brake system, transmission, crankshaft,
for you. camshaft, cylinder head
• One particular highlight is the
patented “tangential elements” Medical technology
function. This helps evaluate the • Contour of the hip and knee endoprostheses, contour
tangential transitions between on medical screws, contour on dental implan
radii and straight lines easily and
independently of the user.

For more information, please visit our website: www.mahr.com

28 MarSurf | Surface Measuring Instruments
