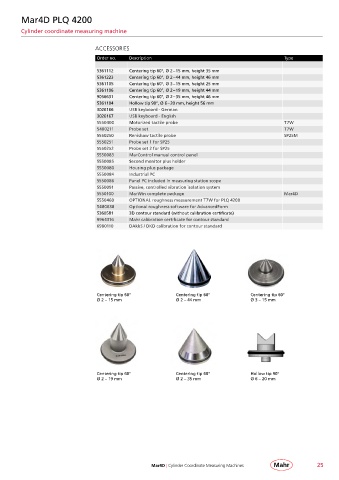

Mar4D PLQ 4200

Cylinder coordinate measuring machine

ACCESSORIES
Order no. Description Type

5361112 Centering tip 60°, Ø 2 – 15 mm, height 35 mm
5361223 Centering tip 60°, Ø 2 – 44 mm, height 46 mm
5361105 Centering tip 60°, Ø 3 – 15 mm, height 25 mm
5361106 Centering tip 60°, Ø 2 – 19 mm, height 44 mm
9056631 Centering tip 60°, Ø 2 – 35 mm, height 46 mm
5361104 Hollow tip 90°, Ø 6 – 20 mm, height 56 mm
3026166 USB keyboard - German
3026167 USB keyboard - English
5550400 Motorized tactile probe T7W
5400211 Probe set T7W
5550250 Renishaw tactile probe SP25M
5550251 Probe set 1 for SP25
5550252 Probe set 2 for SP25
5550083 MarControl manual control panel
5550085 Second monitor plus holder
5550080 Housing plus package
5550084 Industrial PC
5550086 Panel PC included in measuring station scope
5550091 Passive, controlled vibration isolation system
5550100 MarWin complete package Mar4D
5550460 OPTIONAL roughness measurement T7W for PLQ 4200
5480638 Optional roughness software for AdvancedForm
5360581 3D contour standard (without calibration certificate)
9964316 Mahr calibration certificate for contour standard
6980110 DAkkS / DKD calibration for contour standard

Centering tip 60° Centering tip 60° Centering tip 60°
Ø 2 – 15 mm Ø 2 – 44 mm Ø 3 – 15 mm

Centering tip 60° Centering tip 60° Hollow tip 90°
Ø 2 – 19 mm Ø 2 – 35 mm Ø 6 – 20 mm

Mar4D | Cylinder Coordinate Measuring Machines 25
