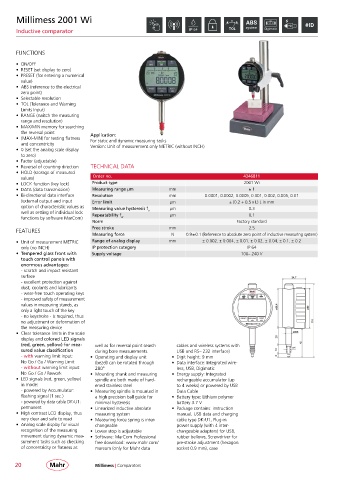

Millimess 2001 Wi

Inductive comparator

FUNCTIONS

• ON/OFF
• RESET (set display to zero)
• PRESET (for entering a numerical
value)
• ABS (reference to the electrical
zero point)
• Selectable resolution
• TOL (Tolerance and Warning
Limits Input)
• RANGE (switch the measuring
range and resolution)
• MAX/MIN memory for searching
the reversal point Application:
• (MAX-MIN) for testing flatness For static and dynamic measuring tasks
and concentricity Version: Unit of measurement only METRIC (without INCH)
• 0 (set the analog scale display
to zero)
• Factor (adjustable)
• Reversal of counting direction TECHNICAL DATA
• HOLD (storage of measured
values) Order no. 4346811
• LOCK function (key lock) Product type 2001 Wi
• DATA (data transmission) Measuring range µm mm ± 1
• Bi-directional data interface Resolution mm 0.0001, 0.0002, 0.0005, 0.001, 0.002, 0.005, 0.01
(external output and input Error limit µm ± (0.2 + 0.5 x L) L in mm
option of characteristic values as Measuring value hysteresis f µm 0.3
well as setting of individual lock Repeatability f u µm 0.1
functions by software MarCom) w
Norm Factory standard
Free stroke mm 2.5
FEATURES
Measuring force N 0.9 ± 0.1 (Reference to absolute zero point of inductive measuring system)
• Unit of measurement METRIC Range of analog display mm ± 0.002, ± 0.004, ± 0.01, ± 0.02, ± 0.04, ± 0.1, ± 0.2
only (no INCH) IP protection category IP 64
• Tempered glass front with Supply voltage 100– 240 V
touch control panels with
enormous advantages:
- scratch and impact resistant
surface
- excellent protection against
dust, coolants and lubricants
- wear-free touch operating keys
- improved safety of measurement
values in measuring stands, as
only a light touch of the key
- no keystroke - is required, thus
no adjustment or deformation of
the measuring device
• Clear tolerance limits in the scale
display and colored LED signals
(red, green, yellow) for mea- well as for reversal point search cables and wireless systems with
sured value classification during bore measurements USB and RS– 232 interface)
- with warning limit input: • Operating and display unit • Digit height: 9 mm
No Go / Go / Warning Limit (bezel) can be rotated through • Data interface: Integrated wire-
- without warning limit input: 280° less, USB, Digimatic
No Go / Go / Rework • Mounting shank and measuring • Energy supply: Integrated
• LED signals (red, green, yellow) spindle are both made of hard- rechargeable accumulator (up
in mode: ened stainless steel to 4 weeks) or powered by USB
- powered by Accumulator: • Measuring spindle is mounted in Data Cable
flashing signal (1 sec.) a high precision ball guide for • Battery type: Lithium polymer
- powered by data cable DK-U1: minimal hysteresis battery 3.7 V
permanent • Linearized inductive absolute • Package contains: instruction
• High contrast LCD display, thus measuring system manual, USB data and charging
very clear and safe to read • Measuring force spring is inter- cable type DK-U1, Plug-in
• Analog scale display for visual changeable power supply (with 4 inter-
recognition of the measuring • Lower stop is adjustable changeable adapters) for USB,
movement during dynamic mea- • Software: MarCom Professional rubber bellows, Screwdriver for
surement tasks such as checking free download: www.mahr.com/ pre-stroke adjustment (hexagon
of concentricity or flatness as marcom (only for Mahr data socket 0.9 mm), case

20 Millimess | Comparators
