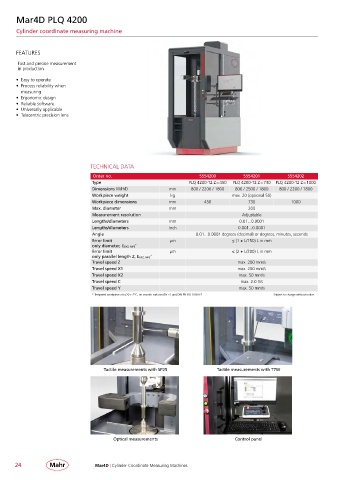

Mar4D PLQ 4200

Cylinder coordinate measuring machine

FEATURES
Fast and precise measurement
in production

• Easy to operate
• Process reliability when
measuring
• Ergonomic design
• Reliable software
• Universally applicable
• Telecentric precision lens

TECHNICAL DATA
Order no. 5554200 5554201 5554202
Type PLQ 4200-T2 Z = 450 PLQ 4200-T2 Z = 730 PLQ 4200-T2 Z = 1000
Dimensions W/H/D mm 800 / 2200 / 1800 800 / 2500 / 1800 800 / 2200 / 1800
Workpiece weight kg max. 20 (optional 50)
Workpiece dimensions mm 450 730 1000
Max. diameter mm 200
Measurement resolution Adjustable
Lengths/diameters mm 0.01...0.0001
Lengths/diameters inch 0.001...0.0001
Angle 0.01...0.0001 degrees (decimal) or degrees, minutes, seconds
Error limit µm ≤ (1 + L/150) L in mm
*
only diameter, EBXZ, MPE
Error limit µm ≤ (2 + L/200) L in mm
*
only parallel length Z, EBXZ, MPE
Travel speed Z max. 200 mm/s
Travel speed X1 max. 200 mm/s
Travel speed X2 max. 50 mm/s
Travel speed C max. 2.0 1/s
Travel speed Y max. 50 mm/s
* Tempered workpiece at t=20 +-2°C, on smooth surfaces (Rz <1 µm) DIN EN ISO 10360-7 Subject to change without notice.

Tactile measurements with SP25 Tactile measurements with T7W

Optical measurements Control panel

24 Mar4D | Cylinder Coordinate Measuring Machines
