P. 699

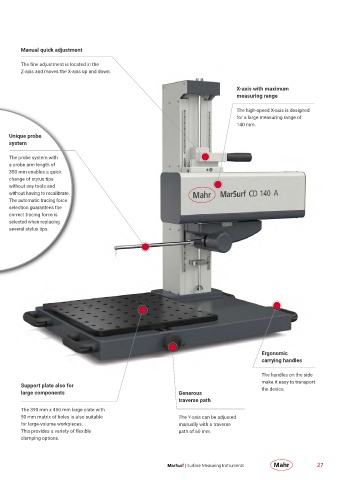

Manual quick adjustment
The fine adjustment is located in the
Z-axis and moves the X-axis up and down.
X-axis with maximum
measuring range
The high-speed X-axis is designed
for a large measuring range of
140 mm.
Unique probe
system
The probe system with
a probe arm length of
350 mm enables a quick
change of stylus tips
without any tools and
without having to recalibrate.
The automatic tracing force
selection guarantees the
correct tracing force is
selected when replacing
several stylus tips.
Ergonomic
carrying handles
The handles on the side
make it easy to transport
Support plate also for the device.
large components Generous
traverse path
The 390 mm x 450 mm large plate with
50 mm matrix of holes is also suitable The Y-axis can be adjusted
for large-volume workpieces. manually with a traverse
This provides a variety of flexible path of 60 mm.
clamping options.
MarSurf | Surface Measuring Instruments 27
