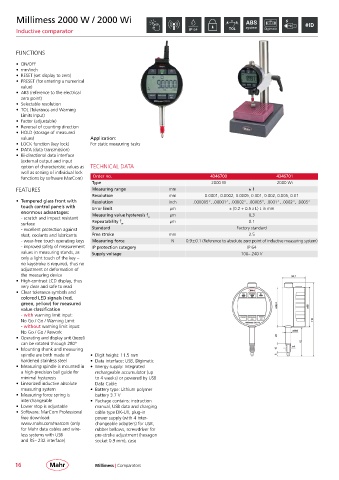

Millimess 2000 W / 2000 Wi

Inductive comparator

FUNCTIONS

• ON/OFF
• mm/inch
• RESET (set display to zero)
• PRESET (for entering a numerical
value)
• ABS (reference to the electrical
zero point)
• Selectable resolution
• TOL (Tolerance and Warning
Limits Input)
• Factor (adjustable)
• Reversal of counting direction
• HOLD (storage of measured
values) Application:
• LOCK function (key lock) For static measuring tasks
• DATA (data transmission)
• Bi-directional data interface
(external output and input
option of characteristic values as TECHNICAL DATA
well as setting of individual lock
functions by software MarCom) Order no. 4346700 4346701
Type 2000 W 2000 Wi
FEATURES Measuring range mm ± 1
Resolution mm 0.0001, 0.0002, 0.0005, 0.001, 0.002, 0.005, 0.01
• Tempered glass front with Resolution inch .000005”, .00001”, .00002”, .00005”, .0001”, .0002”, .0005”
touch control panels with Error limit µm ± (0.2 + 0.5 x L) L in mm
enormous advantages: Measuring value hysteresis f µm 0.3
- scratch and impact resistant u
surface Repeatability f w µm 0.1
- excellent protection against Standard Factory standard
dust, coolants and lubricants Free stroke mm 2.5
- wear-free touch operating keys Measuring force N 0.9 ± 0.1 (Reference to absolute zero point of inductive measuring system)
- improved safety of measurement IP protection category IP 64
values in measuring stands, as Supply voltage 100– 240 V
only a light touch of the key –
no keystroke is required, thus no
adjustment or deformation of
the measuring device
• High-contrast LCD display, thus
very clear and safe to read
• Clear tolerance symbols and
colored LED signals (red,
green, yellow) for measured
value classification
- with warning limit input:
No Go / Go / Warning Limit
- without warning limit input:
No Go / Go / Rework
• Operating and display unit (bezel)
can be rotated through 280°
• Mounting shank and measuring
spindle are both made of • Digit height: 11.5 mm
hardened stainless steel • Data interface: USB, Digimatic
• Measuring spindle is mounted in • Energy supply: Integrated
a high-precision ball guide for rechargeable accumulator (up
minimal hysteresis to 4 weeks) or powered by USB
• Linearized inductive absolute Data Cable
measuring system • Battery type: Lithium polymer
• Measuring force spring is battery 3.7 V
interchangeable • Package contains: instruction
• Lower stop is adjustable manual, USB data and charging
• Software: MarCom Professional cable type DK-U1, plug-in
free download: power supply (with 4 inter-
www.mahr.com/marcom (only changeable adapters) for USB,
for Mahr data cables and wire- rubber bellows, screwdriver for
less systems with USB pre-stroke adjustment (hexagon
and RS– 232 interface) socket 0.9 mm), case

16 Millimess | Comparators
