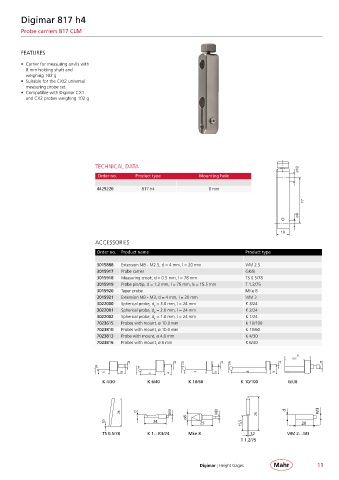

Digimar 817 h4

Probe carriers 817 CLM

FEATURES

• Carrier for measuring anvils with
8 mm holding shaft and
weighing 102 g
• Suitable for the CXt2 universal
measuring probe set
• Compatible with Digimar CX1
and CX2 probes weighing 102 g

TECHNICAL DATA
Order no. Product type Mounting hole

4429220 817 h4 8 mm

ACCESSORIES

Order no. Product name Product type

3015888 Extension M3 - M2.5, d = 4 mm, l = 20 mm V/M 2.5
3015917 Probe carrier GK/8
3015918 Measuring crook, d = 0.5 mm, l = 78 mm TS 0.5/78
3015919 Probe pin/tip, d = 1.2 mm, l = 75 mm, ls = 15.5 mm T 1.2/75
3015920 Taper probe MKe 8
3015921 Extension M3 - M3, d = 4 mm, l = 20 mm V/M 3
3022000 Spherical probe, d = 3.0 mm, l = 24 mm K 3/24
k
3022001 Spherical probe, d = 2.0 mm, l = 24 mm K 2/24
k
3022002 Spherical probe, d = 1.0 mm, l = 24 mm K 1/24
k
7023615 Probes with mount, ø 10.0 mm K 10/100
7023810 Probes with mount, ø 10.0 mm K 10/60
7023813 Probe with mount, ø 4.0 mm K 4/30
7023816 Probes with mount, ø 6 mm K 6/40

51
37,5
ø8

K 4/30 K 6/40 K 10/60 K 10/100 GK/8

78 d M3 M3 75 d M3
ø8
0,5 24 25 15,5 20
TS 0.5/78 K 1…K3/24 Mke 8 1,2 V/M 2…M3
T 1.2/75

Digimar | Height Gages 11
