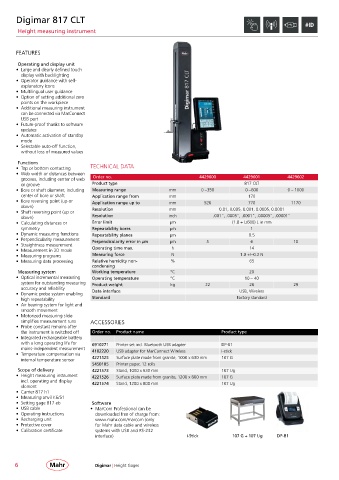

Digimar 817 CLT

Height measuring instrument

FEATURES

Operating and display unit
• Large and clearly defined touch
display with backlighting
• Operator guidance with self-
explanatory icons
• Multilingual user guidance
• Option of setting additional zero
points on the workpiece
• Additional measuring instrument
can be connected via MarConnect
USB port
• Future-proof thanks to software
updates
• Automatic activation of standby
mode
• Selectable auto-off function,
without loss of measured values
Functions
• Top or bottom contacting TECHNICAL DATA
• Web width or distances between
grooves, including center of web Order no. 4429600 4429601 4429602
or groove Product type 817 CLT
• Bore or shaft diameter, including Measuring range mm 0 – 350 0 – 600 0 – 1000
center of bore or shaft Application range from mm 170
• Bore reversing point (up or Application range up to mm 520 770 1170
down)
• Shaft reversing point (up or Resolution mm 0.01, 0.005, 0.001, 0.0005, 0.0001
down) Resolution inch .001”, .0005”, .0001”, .00005”, .00001”
• Calculating distances or Error limit µm (1.8 + L/600) L in mm
symmetry Repeatability bores µm 1
• Dynamic measuring functions Repeatability planes µm 0.5
• Perpendicularity measurement Perpendicularity error in µm µm 5 6 10
• Straightness measurement
• Measurement in 2D mode Operating time max. h 14
• Measuring programs Measuring force N 1.0 +/– 0.2 N
• Measuring data processing Relative humidity non- % 65
condensing
Measuring system Working temperature °C 20
• Optical incremental measuring Operating temperature °C 10 – 40
system for outstanding measuring Product weight kg 22 26 29
accuracy and reliability
• Dynamic probe system enabling Data interface USB, Wireless
high repeatability Standard Factory standard
• Air bearing system for light and
smooth movement
• Motorized measuring slide
simplifies measurement runs ACCESSORIES
• Probe constant remains after
the instrument is switched off Order no. Product name Product type
• Integrated rechargeable battery
with a long operating life for 6910271 Printer set incl. Bluetooth USB adapter DP-B1
mains-independent measurement
• Temperature compensation via 4102220 USB adapter for MarConnect Wireless i-stick
internal temperature sensor 4221525 Surface plate made from granite, 1000 x 630 mm 107 G
5450105 Printer paper, 12 rolls
Scope of delivery 4221573 Stand, 1000 x 630 mm 107 Ug
• Height measuring instrument 4221526 Surface plate made from granite, 1200 x 800 mm 107 G
incl. operating and display 4221574 Stand, 1200 x 800 mm 107 Ug
element
• Carrier 817 h1
• Measuring anvil K6/51
• Setting gage 817 eb Software
• USB cable • MarCom Professional can be
• Operating instructions downloaded free of charge from:
• Recharging unit www.mahr.com/marcom (only
• Protective cover for Mahr data cable and wireless
• Calibration certificate systems with USB and RS-232
interface) i-Stick 107 G + 107 Ug DP-B1
