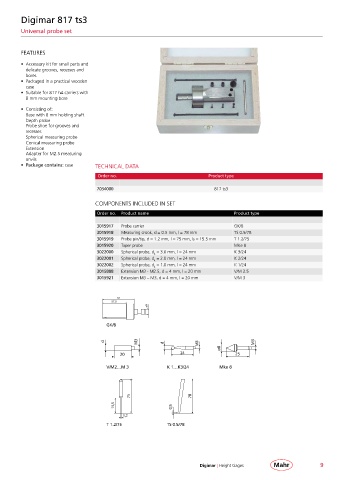

Digimar 817 ts3

Universal probe set

FEATURES

• Accessory kit for small parts and
delicate grooves, recesses and
bores
• Packaged in a practical wooden
case
• Suitable for 817 h4 carriers with
8 mm mounting bore
• Consisting of:
Base with 8 mm holding shaft
Depth probe
Probe shoe for grooves and
recesses
Spherical measuring probe
Conical measuring probe
Extension
Adapter for M2.5 measuring
anvils
• Package contains: case TECHNICAL DATA
Order no. Product type

7034000 817 ts3

COMPONENTS INCLUDED IN SET
Order no. Product name Product type

3015917 Probe carrier GK/8
3015918 Measuring crook, d = 0.5 mm, l = 78 mm TS 0.5/78
3015919 Probe pin/tip, d = 1.2 mm, l = 75 mm, ls = 15.5 mm T 1.2/75
3015920 Taper probe MKe 8
3022000 Spherical probe, d = 3.0 mm, l = 24 mm K 3/24
k
3022001 Spherical probe, d = 2.0 mm, l = 24 mm K 2/24
k
3022002 Spherical probe, d = 1.0 mm, l = 24 mm K 1/24
k
3015888 Extension M3 - M2.5, d = 4 mm, l = 20 mm V/M 2.5
3015921 Extension M3 – M3, d = 4 mm, l = 20 mm V/M 3

51
37,5
ø8

GK/8

M3 d M3 M3
d
ø8
20 24 25

V/M2…M 3 K 1…K3/24 Mke 8

75 78
15,5 0,5

1,2
T 1.2/75 TS 0.5/78
