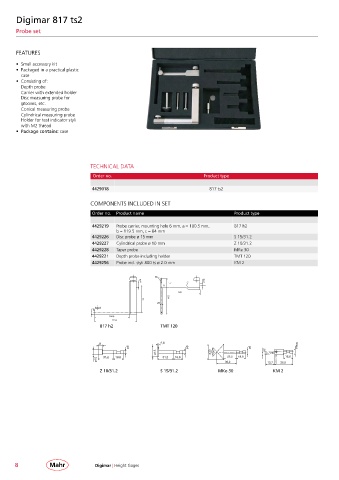

Digimar 817 ts2

Probe set

FEATURES

• Small accessory kit
• Packaged in a practical plastic
case
• Consisting of:
Depth probe
Carrier with extended holder
Disc measuring probe for
grooves, etc.
Conical measuring probe
Cylindrical measuring probe
Holder for test indicator styli
with M2 thread
• Package contains: case

TECHNICAL DATA
Order no. Product type

4429018 817 ts2

COMPONENTS INCLUDED IN SET
Order no. Product name Product type

4429219 Probe carrier, mounting hole 6 mm, a = 100.5 mm, 817 h2
b = 119.5 mm, c = 84 mm
4429226 Disc probe ø 15 mm S 15/31.2
4429227 Cylindrical probe ø 10 mm Z 10/31.2
4429228 Taper probe MKe 30
4429221 Depth probe including holder TMT 120
4429256 Probe incl. styli 800 ts ø 2.0 mm KM 2

817 h2 TMT 120

Z 10/31.2 S 15/31.2 MKe 30 KM 2
