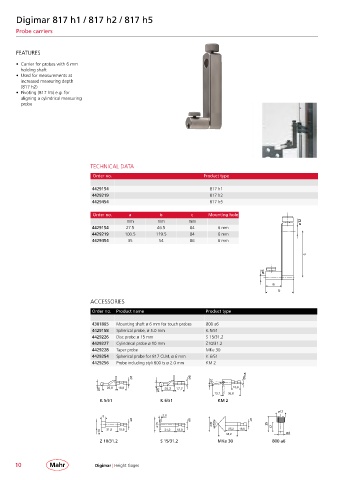

Digimar 817 h1 / 817 h2 / 817 h5

Probe carriers

FEATURES

• Carrier for probes with 6 mm
holding shaft
• Used for measurements at
increased measuring depth
(817 h2)
• Pivoting (817 h5) e.g. for
aligning a cylindrical measuring
probe

TECHNICAL DATA
Order no. Product type

4429154 817 h1
4429219 817 h2
4429454 817 h5
Order no. a b c Mounting hole
mm mm mm ø12
4429154 27.5 46.5 84 6 mm
4429219 100.5 119.5 84 6 mm
4429454 35 54 86 6 mm

c

ø6

a
b
ACCESSORIES

Order no. Product name Product type

4301865 Mounting shaft ø 6 mm for touch probes 800 a6
4429158 Spherical probe, ø 5.0 mm K 5/51
4429226 Disc probe ø 15 mm S 15/31.2
4429227 Cylindrical probe ø 10 mm Z10/31.2
4429228 Taper probe MKe 30
4429254 Spherical probe for 817 CLM, ø 6 mm K 6/51
4429256 Probe including styli 800 ts ø 2.0 mm KM 2

K 5/51 K 6/51 KM 2

ø12
25
17
ød
Z 10/31.2 S 15/31.2 MKe 30 800 a6

10 Digimar | Height Gages
