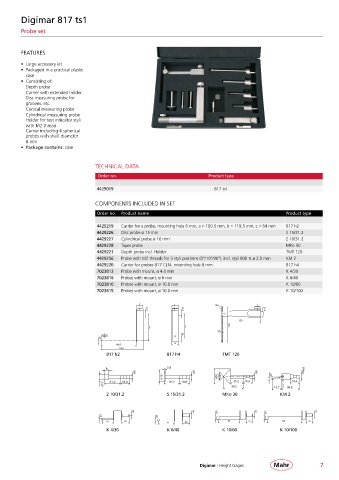

Digimar 817 ts1

Probe set

FEATURES

• Large accessory kit
• Packaged in a practical plastic
case
• Consisting of:
Depth probe
Carrier with extended holder
Disc measuring probe for
grooves, etc.
Conical measuring probe
Cylindrical measuring probe
Holder for test indicator styli
with M2 thread
Carrier including 4 spherical
probes with shaft diameter
8 mm
• Package contains: case

TECHNICAL DATA
Order no. Product type

4429019 817 ts1

COMPONENTS INCLUDED IN SET
Order no. Product name Product type

4429219 Carrier for a probe, mounting hole 6 mm, a = 100.5 mm, b = 119.5 mm, c = 84 mm 817 h2
4429226 Disc probe ø 15 mm S 15/31.2
4429227 Cylindrical probe ø 10 mm Z 10/31.2
4429228 Taper probe MKe 30
4429221 Depth probe incl. Holder TMT 120
4429256 Probe with M2 threads for 3 styli positions (0°/10°/90°), incl. styli 800 ts ø 2.0 mm KM 2
4429220 Carrier for probes 817 CLM, mounting hole 8 mm 817 h4
7023813 Probe with mount, ø 4.0 mm K 4/30
7023816 Probes with mount, ø 6 mm K 6/40
7023810 Probes with mount, ø 10.0 mm K 10/60
7023615 Probes with mount, ø 10.0 mm K 10/100

817 h2 817 h4 TMT 120

Z 10/31.2 S 15/31.2 MKe 30 KM 2

K 4/30 K 6/40 K 10/60 K 10/100

Digimar | Height Gages 7
