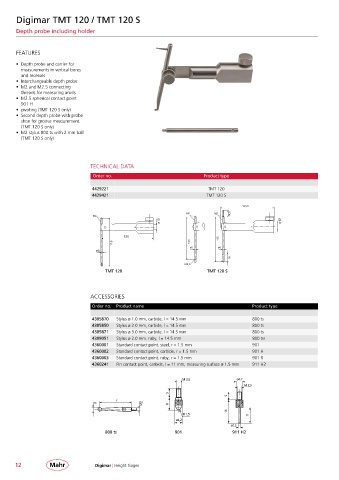

Digimar TMT 120 / TMT 120 S

Depth probe including holder

FEATURES

• Depth probe and carrier for
measurements in vertical bores
and recesses
• Interchangeable depth probe
• M2 and M2.5 connecting
threads for measuring anvils
• M2.5 spherical contact point
901 H
• pivoting (TMT 120 S only)
• Second depth probe with probe
shoe for groove measurement
(TMT 120 S only)
• M2 stylus 800 ts with 2 mm ball
(TMT 120 S only)

TECHNICAL DATA
Order no. Product type

4429221 TMT 120
4429421 TMT 120 S

TMT 120 TMT 120 S

ACCESSORIES
Order no. Product name Product type

4305870 Stylus ø 1.0 mm, carbide, l = 14.5 mm 800 ts
4305850 Stylus ø 2.0 mm, carbide, l = 14.5 mm 800 ts
4305871 Stylus ø 3.0 mm, carbide, l = 14.5 mm 800 ts
4309051 Stylus ø 2.0 mm, ruby, l = 14.5 mm 800 tsr
4360001 Standard contact point, steel, r = 1.5 mm 901
4360002 Standard contact point, carbide, r = 1.5 mm 901 H
4360003 Standard contact point, ruby, r = 1.5 mm 901 R
4360241 Pin contact point, carbide, l = 11 mm, measuring surface ø 1.5 mm 911 H2

M 2,5

5
l
d M2 6
R 1,5
ø4,2
800 ts 901 911 H2

12 Digimar | Height Gages
