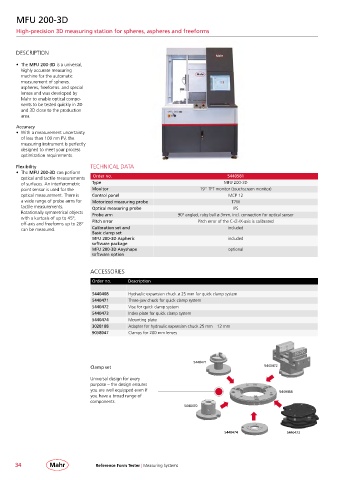

MFU 200-3D

High-precision 3D measuring station for spheres, aspheres and freeforms

DESCRIPTION

• The MFU 200-3D is a universal,
highly accurate measuring
machine for the automatic
measurement of spheres.
aspheres, freeforms. and special
lenses and was developed by
Mahr to enable optical compo-
nents to be tested quickly in 2D
and 3D close to the production
area.
Accuracy
• With a measurement uncertainty
of less than 100 nm PV, the
measuring instrument is perfectly
designed to meet your process
optimization requirements.
Flexibility TECHNICAL DATA
• The MFU 200-3D can perform
optical and tactile measurements Order no. 5440581
of surfaces. An interferometric Type MFU 200-3D
point sensor is used for the Monitor 19" TFT monitor (touchscreen monitor)
optical measurement. There is Control panel MCP 12
a wide range of probe arms for Motorized measuring probe T7W
tactile measurements. Optical measuring probe IPS
Rotationally symmetrical objects Probe arm 90° angled, ruby ball ø 3mm, incl. connection for optical sensor
with a kurtosis of up to 45°, Pitch error Pitch error of the C-/Z-/X-axis is calibrated
off-axis and freeforms up to 28°
can be measured. Calibration set and included
Basic clamp set
MFU 200-3D Aspheric included
software package
MFU 200-3D Anyshape optional
software option

ACCESSORIES
Order no. Description

5440468 Hydraulic expansion chuck ø 25 mm for quick clamp system
5440471 Three-jaw chuck for quick clamp system
5440472 Vise for quick clamp system
5440473 Index plate for quick clamp system
5440474 Mounting plate
3028108 Adapter for hydraulic expansion chuck 25 mm – 12 mm
9058047 Clamps for 200 mm lenses

5440471
Clamp set 5440472
Universal design for every
purpose – the design ensures
you are well equipped even if 5440468
you have a broad range of
components.
5440470

5440474 5440473

34 Reference Form Tester | Measuring Systems
