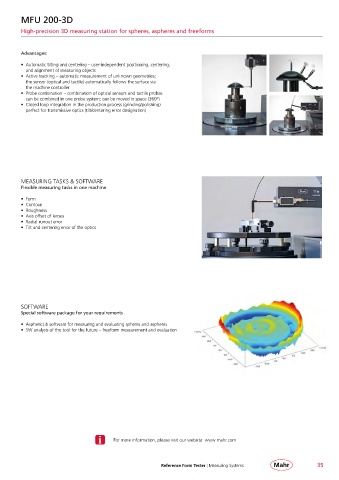

MFU 200-3D

High-precision 3D measuring station for spheres, aspheres and freeforms

Advantages:

• Automatic tilting and centering – user-independent positioning, centering,
and alignment of measuring objects
• Active tracking – automatic measurement of unknown geometries;
the sensor (optical and tactile) automatically follows the surface via
the machine controller
• Probe combination – combination of optical sensors and tactile probes
can be combined in one probe system; can be moved in space (360°)
• Closed loop integration in the production process (grinding/polishing)
perfect for transmissive optics (tilt/centering error designation)

MEASURING TASKS & SOFTWARE
Flexible measuring tasks in one machine

• Form
• Contour
• Roughness
• Axis offset of lenses
• Radial runout error
• Tilt and centering error of the optics

SOFTWARE
Special software package for your requirements
• AsphericLib software for measuring and evaluating spheres and aspheres
• SW analysis of the tool for the future – freeform measurement and evaluation

For more information, please visit our website: www.mahr.com

Reference Form Tester | Measuring Systems 35
