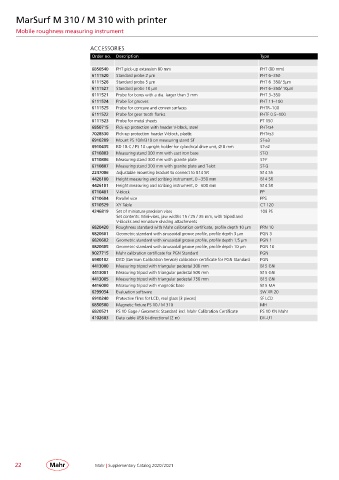

MarSurf M 310 / M 310 with printer

Mobile roughness measuring instrument

ACCESSORIES
Order no. Description Type

6850540 PHT pick-up extension 80 mm PHT (80 mm)
6111520 Standard probe 2 µm PHT 6– 350
6111526 Standard probe 5 µm PHT 6– 350/ 5µm
6111527 Standard probe 10 µm PHT 6– 350/ 10µm
6111521 Probe for bores with a dia. larger than 3 mm PHT 3– 350
6111524 Probe for grooves PHT 11– 100
6111525 Probe for concave and convex surfaces PHTR– 100
6111522 Probe for gear tooth flanks PHTF 0.5– 100
6111523 Probe for metal sheets PT 150
6850715 Pick-up protection with header V-block, steel PHT-ts4
7028530 Pick-up protection header V-block, plastic PHT-ts3
6910209 Mount PS 10/M310 on measuring stand ST ST-a3
6910435 RD 18 C / PS 10 upright holder for cylindrical drive unit, Ø 8 mm ST-a2
6710803 Measuring stand 300 mm with cast iron base ST-D
6710806 Measuring stand 300 mm with granite plate ST-F
6710807 Measuring stand 300 mm with granite plate and T-slot ST-G
2247086 Adjustable mounting bracket to connect to 814 SR 814 Sh
4426100 Height measuring and scribing instrument, 0 – 350 mm 814 SR
4426101 Height measuring and scribing instrument, 0 – 600 mm 814 SR
6710401 V-block PP
6710604 Parallel vice PPS
6710529 XY Table CT 120
4246819 Set of miniature precision vises 109 PS
Set contents: Mini-vises, jaw widths 15 / 25 / 35 mm, with tripod and
V-blocks and miniature dividing attachments
6820420 Roughness standard with Mahr calibration certificate, profile depth 10 µm PRN 10
6820601 Geometric standard with sinusoidal groove profile, profile depth 3 µm PGN 3
6820602 Geometric standard with sinusoidal groove profile, profile depth 1,5 µm PGN 1
6820605 Geometric standard with sinusoidal groove profile, profile depth 10 µm PGN 10
9027715 Mahr calibration certificate for PGN Standard PGN
6980102 DKD (German Calibration Service) calibration certificate for PGN Standard PGN
4413000 Measuring tripod with triangular pedestal 300 mm 815 GN
4413001 Measuring tripod with triangular pedestal 500 mm 815 GN
4413005 Measuring tripod with triangular pedestal 750 mm 815 GN
4416000 Measuring tripod with magnetic base 815 MA
6299054 Evaluation software SW XR 20
6910240 Protective films for LCD, real glass (3 pieces) SF LCD
6850500 Magnetic fixture PS 10 / M 310 MH
6820521 PS 10 Gage / Geometric Standard incl. Mahr Calibration Certificate PS 10 KN Mahr
4102603 Data cable USB bi-directional (2 m) DK-U1
