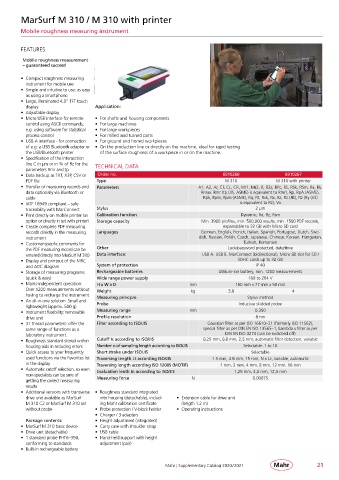

MarSurf M 310 / M 310 with printer

Mobile roughness measuring instrument

FEATURES

Mobile roughness measurement
– guaranteed success!

• Compact roughness measuring
instrument for mobile use
• Simple and intuitive to use: as easy
as using a smartphone
• Large, illuminated 4.3” TFT touch
display Application:
• Adjustable display
• Micro USB interface for remote • For shafts and housing components
control using ASCII commands, • For large machines
e.g. using software for statistical • For large workpieces
process control • For milled and turned parts
• USB-A interface - for connection • For ground and honed workpieces
of e.g. a USB Bluetooth adapter or • On the production line or directly on the machine, ideal for rapid testing
the USB/Bluetooth printer of the surface roughness of a workpiece in or on the machine.
• Specification of the intersection
line C in μm or in % of Rz for the TECHNICAL DATA
parameters Rmr and tp
• Data backup as TXT, X3P, CSV or Order no. 6910260 6910267
PDF file Type M 310 M 310 with printer
• Transfer of measuring records and Parameters A1, A2, Ar, CF, CL, CR, Mr1, Mr2, R, R3z, RPc, RS, RSk, RSm, Ra, Rk,
data optionally via Bluetooth or Rmax, Rmr (tp (JIS, ASME) is equivalent to Rmr), Rp, RpA (ASME),
cable Rpk, Rpm, Rpm (ASME), Rq, Rt, Rvk, Rx, Rz, Rz (JIS), Rz (Ry (JIS)
• IATF 16949 compliant – safe is equivalent to Rz), Vo
traceability with MarConnect Stylus 2 µm
• Print directly on mobile printer (as Calibration function Dynamic; Ra, Rz, Rsm
option or directly in set with printer) Storage capacity Min. 3900 profiles, min. 500,000 results, min. 1500 PDF records,
• Create complete PDF measuring expandable to 32 GB with Micro SD card
records directly in the measuring Languages German, English, French, Italian, Spanish, Portugese, Dutch, Swe-
instrument dish, Russian, Polish, Czech, Japanese, Chinese, Korean, Hungarian,
• Customer-specific comments for Turkish, Romanian
the PDF measuring record can be Other Lock/password protected, date/time
entered directly into MarSurf M 310 Data interface: USB A, USB B, MarConnect (bidirectional), Micro SD slot for SD /
• Display and printout of the MRC SDHC cards up to 32 GB
and ADC diagram System of protection IP 40
• Storage of measuring programs Rechargeable batteries Lithium-ion battery, min. 1200 measurements
(quick & easy) Wide range power supply 100 to 264 V
• Mains-independent operation: H x W x D mm 160 mm x 77 mm x 50 mm
Over 1200 measurements without Weight kg 3,6 4
having to recharge the instrument Measuring principle Stylus method
• An all-in-one solution. Small and Probe Inductive skidded probe
lightweight (approx. 500 g)
• Instrument flexibility: removable Measuring range mm 0,350
drive unit Profile resolution 8 nm
• 31 thread parameters: offer the Filter according to ISO/JIS Gaussian filter as per ISO 16610– 21 (formerly ISO 11562),
same range of functions as a special filter as per DIN EN ISO 13565– 1, Lambda s filter as per
laboratory instrument. DIN EN ISO 3274 (can be switched off)
• Roughness standard stored within Cutoff Ic according to ISO/JIS 0,25 mm, 0,8 mm, 2,5 mm, automatic filter detection, variable
housing aids in reducing errors Number n of sampling length according to ISO/JIS Selectable: 1 to 16
• Quick access to your frequently Short stroke under ISO/JIS Selectable
used functions via the Favorites list Traversing length Lt according ISO/JIS 1.5 mm, 4.8 mm, 15 mm, N x Lc, variable, automatic
in the display Traversing length according ISO 12085 (MOTIF) 1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm
• Automatic cutoff selection, so even Evaluation lenth In according to ISO/JIS 1,25 mm, 4,0 mm, 12,5 mm
non-specialists can be sure of Measuring force N 0.00075
getting the correct measuring
results
• Additional versions with transverse • Roughness standard integrated
drive unit available as MarSurf into housing (detachable), includ- • Extension cable for drive unit
M 310 C2 or MarSurf M 310 set ing Mahr calibration certificate (length 1.2 m)
without probe • Probe protection / V-block holder • Operating instructions
• Charger / 3 adapters
Package contents: • Height adjustment (integrated)
• MarSurf M 310 basic device • Carry case with shoulder strap
• Drive unit (detachable) • USB cable
• 1 standard probe PHT6– 350, • Hand-held support with height
conforming to standards adjustment (pair)
• Built-in rechargeable battery
