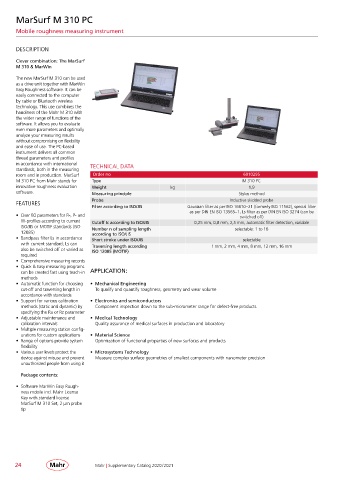

MarSurf M 310 PC

Mobile roughness measuring instrument

DESCRIPTION

Clever combination: The MarSurf
M 310 & MarWin

The new MarSurf M 310 can be used
as a drive unit together with MarWin
Easy Roughness software. It can be
easily connected to the computer
by cable or Bluetooth wireless
technology. This use combines the
handiness of the Mahr M 310 with
the wider range of functions of the
software. It allows you to evaluate
even more parameters and optimally
analyze your measuring results
without compromising on flexibility
and ease of use. The PC-based
instrument delivers all common
thread parameters and profiles
in accordance with international TECHNICAL DATA
standards, both in the measuring
room and in production. MarSurf Order no 6910295
M 310 PC from Mahr stands for Type M 310 PC
innovative roughness evaluation Weight kg 1,9
software. Measuring principle Stylus method
Probe Inductive skidded probe
FEATURES
Filter according to ISO/JIS Gaussian filter as per ISO 16610– 21 (formerly ISO 11562), special filter
as per DIN EN ISO 13565– 1, Ls filter as per DIN EN ISO 3274 (can be
• Over 80 parameters for R-, P- and switched off)
W-profiles according to current Cutoff Ic according to ISO/JIS 0,25 mm, 0,8 mm, 2,5 mm, automatic filter detection, variable
ISO/JIS or MOTIF standards (ISO Number n of sampling length selectable: 1 to 16
12085) according to ISO/JIS
• Bandpass filter Ls in accordance Short stroke under ISO/JIS selectable
with current standard; Ls can Traversing length according 1 mm, 2 mm, 4 mm, 8 mm, 12 mm, 16 mm
also be switched off or varied as ISO 12085 (MOTIF)
required
• Comprehensive measuring records
• Quick & Easy measuring programs
can be created fast using teach-in APPLICATION:
methods
• Automatic function for choosing • Mechanical Engineering
cut-off and traversing length in To qualify and quantify roughness, geometry and wear volume
accordance with standards
• Support for various calibration • Electronics and semiconductors
methods (static and dynamic) by Component inspection down to the sub-micrometer range for defect-free products
specifying the Ra or Rz parameter
• Adjustable maintenance and • Medical Technology
calibration intervals Quality assurance of medical surfaces in production and laboratory
• Multiple measuring station config-
urations for custom applications • Material Science
• Range of options provide system Optimization of functional properties of new surfaces and products
flexibility
• Various user levels protect the • Microsystems Technology
device against misuse and prevent Measure complex surface geometries of smallest components with nanometer precision
unauthorized people from using it

Package contents:
• Software MarWin Easy Rough-
ness mobile incl. Mahr License
Key with standard license
MarSurf M 310 Set, 2 μm probe
tip
