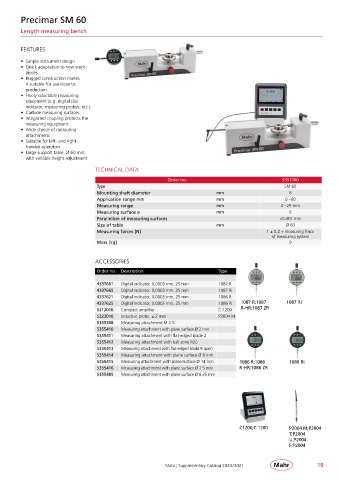

Precimar SM 60

Length measuring bench

FEATURES

• Simple instrument design
• Quick adaptation to new work-
pieces
• Rugged construction makes
it suitable for use close to
production
• Freely selectable measuring
equipment (e.g. digital dial
indicator, measuring probes, etc.)
• Carbide measuring surfaces
• Integrated coupling protects the
measuring equipment
• Wide choice of measuring
attachments
• Suitable for left- and right-
handed operators
• Large support table, Ø 60 mm,
with variable height adjustment
TECHNICAL DATA

Order no. 5357360
Type SM 60
Mounting shaft diameter mm 8
Application range mm mm 0 – 60
Measuring range mm 0 – 25 mm
Measuring surface ø mm 6
Parallelism of measuring surfaces <0,001 mm
Size of table mm Ø 60
Measuring forces [N] 1 ± 0,2 + measuring force
of measuring system
Mass [kg] 9

ACCESSORIES

Order no. Description Type

4337661 Digital indicator, 0,0005 mm, 25 mm 1087 R
4337665 Digital indicator, 0,0005 mm, 25 mm 1087 Ri
4337621 Digital indicator, 0,0005 mm, 25 mm 1086 R
4337625 Digital indicator, 0,0005 mm, 25 mm 1086 Ri 1087 R;1087 1087 Ri
5312010 Compact amplifier C 1200 R-HR;1087 ZR
5323010 Inductive probe, ± 2 mm P2004 M
5355368 Measuring attachment M 2.5
5355410 Measuring attachment with plane surface Ø 2 mm
5355411 Measuring attachment with flat-edged blade 2
5355412 Measuring attachment with ball zone R20
5355413 Measuring attachment with flat-edged blade 8 (pair)
5355414 Measuring attachment with plane surface Ø 8 mm
5355415 Measuring attachment with plane surface Ø 14 mm 1086 R;1086 1086 Ri
5355416 Measuring attachment with plane surface Ø 7.5 mm R-HR;1086 ZR
5355485 Measuring attachment with plane surface Ø 6.35 mm

C1200;C 1200 P2004 M;P2004
T;P2004
U;P2004
F;P2004

Mahr | Supplementary Catalog 2020 / 2021 19
