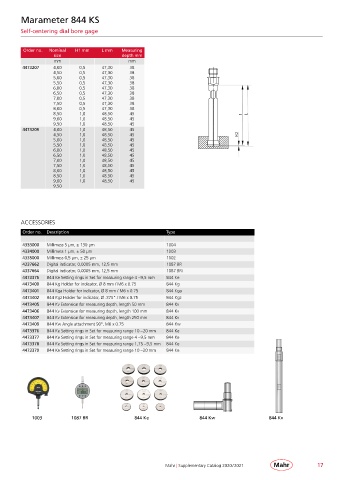

Marameter 844 KS

Self-centering dial bore gage

Order no. Nominal H1 mm L mm Measuring
size depth mm
mm mm
4473207 4,00 0,5 47,30 38
4,50 0,5 47,30 38
5,00 0,5 47,30 38
5,50 0,5 47,30 38
6,00 0,5 47,30 38
6,50 0,5 47,30 38
7,00 0,5 47,30 38
7,50 0,5 47,30 38
8,00 0,5 47,30 38
8,50 1,0 48,50 45
9,00 1,0 48,50 45
9,50 1,0 48,50 45
4473209 4,00 1,0 48,50 45
4,50 1,0 48,50 45
5,00 1,0 48,50 45
5,50 1,0 48,50 45
6,00 1,0 48,50 45
6,50 1,0 48,50 45
7,00 1,0 48,50 45
7,50 1,0 48,50 45
8,00 1,0 48,50 45
8,50 1,0 48,50 45
9,00 1,0 48,50 45
9,50

ACCESSORIES
Order no. Description Type

4333000 Millimess 5 µm, ± 130 µm 1004
4334000 Millimess 1 µm, ± 50 µm 1003
4335000 Millimess 0,5 µm, ± 25 µm 1002
4337662 Digital indicator, 0,0005 mm, 12,5 mm 1087 BR
4337664 Digital indicator, 0,0005 mm, 12,5 mm 1087 BRi
4473375 844 Ke Setting rings in Set for measuring range 4 – 9,5 mm 844 Ke
4473400 844 Kg Holder for indicator, Ø 8 mm / M6 x 0.75 844 Kg
4473401 844 Kga Holder for indicator, Ø 8 mm / M6 x 0.75 844 Kga
4473402 844 Kgz Holder for indicator, Ø .375” / M6 x 0.75 844 Kgz
4473405 844 Kv Extension for measuring depth, length 50 mm 844 Kv
4473406 844 Kv Extension for measuring depth, length 100 mm 844 Kv
4473407 844 Kv Extension for measuring depth, length 250 mm 844 Kv
4473409 844 Kw Angle attachment 90°, M6 x 0.75 844 Kw
4473376 844 Ke Setting rings in Set for measuring range 10 – 20 mm 844 Ke
4473377 844 Ke Setting rings in Set for measuring range 4 – 9,5 mm 844 Ke
4473378 844 Ke Setting rings in Set for measuring range 1,75 – 9,5 mm 844 Ke
4473379 844 Ke Setting rings in Set for measuring range 10 – 20 mm 844 Ke

1003 1087 BR 844 Ke 844 Kw 844 Kv

Mahr | Supplementary Catalog 2020 / 2021 17
