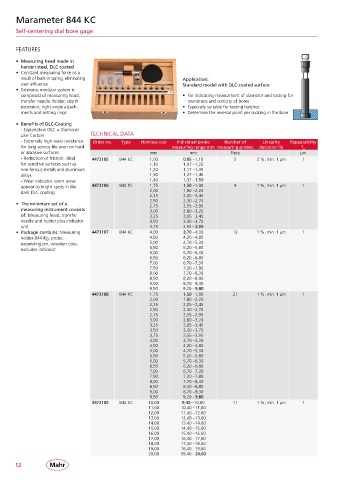

Marameter 844 KC

Self-centering dial bore gage

FEATURES

• Measuring head made in
harden steel, DLC coated
• Constant measuring force as a
result of built-in spring, eliminating Application:
user influence Standard model with DLC-coated surface
• Extensive modular system is
composed of measuring head, • For indicating measurment of diameter and testing for
transfer needle, holder, depth roundness and conicity of bores
extension, right angle attach- • Especially suitable for testing batches
ments and setting rings • Determine the reversal point per rocking in the bore

• Benefits of DLC-Coating
- Explanation DLC = Diamond
Like Carbon TECHNICAL DATA
- Extremely high wear resistance, Order no. Type Nominal size Individual probe Number of Linearity Repeatability
for long service life even on hard measuring range mm measuring probes deviation fe f w
or abrasive surfaces mm mm Piece µm
- Reduction of friction, ideal 4473105 844 KC 1,00 0,95 – 1,15 5 2 %, min. 1 µm 1
for sensitive surfaces such as 1,10 1,07 – 1,25
non-ferrous metals and aluminium 1,20 1,17 – 1,35
alloys 1,30 1,27 – 1,45
- Wear indicator, worn areas 1,40 1,37 - 1,55
appear as bright spots in the 4473106 844 KC 1,75 1,50 – 1,90 9 1 %, min. 1 µm 1
dark DLC coating 2,00 1,80 – 2,20
2,25 2,05 – 2,45
2,50 2,30 – 2,70
• The minimum set of a 2,75 2,55 – 2,95
measuring instrument consists 3,00 2,80 – 3,20
of: Measuring head, transfer 3,25 3,05 – 3,45
needle and holder plus indicator 3,50 3,30 – 3,70
unit 3,75 3,55 - 3,95
• Package contains: Measuring 4473107 844 KC 4,00 3,70 – 4,30 12 1 %, min. 1 µm 1
holder 844 Kg, probe, 4,50 4,20 – 4,80
expanding pin, wooden case, 5,00 4,70 – 5,30
excludes indicator 5,50 5,20 – 5,80
6,00 5,70 – 6,30
6,50 6,20 – 6,80
7,00 6,70 – 7,30
7,50 7,20 – 7,80
8,00 7,70 – 8,30
8,50 8,20 – 8,80
9,00 8,70 – 9,30
9,50 9,20 - 9,80
4473108 844 KC 1,75 1,50 – 1,90 21 1 %, min. 1 µm 1
2,00 1,80 – 2,20
2,25 2,05 – 2,45
2,50 2,30 – 2,70
2,75 2,55 – 2,95
3,00 2,80 – 3,20
3,25 3,05 – 3,45
3,50 3,30 – 3,70
3,75 3,55 – 3,95
4,00 3,70 – 4,30
4,50 4,20 – 4,80
5,00 4,70 – 5,30
5,50 5,20 – 5,80
6,00 5,70 – 6,30
6,50 6,20 – 6,80
7,00 6,70 – 7,30
7,50 7,20 – 7,80
8,00 7,70 – 8,30
8,50 8,20 – 8,80
9,00 8,70 – 9,30
9,50 9,20 - 9,80
4473109 844 KC 10,00 9,40 – 10,60 11 1 %, min. 1 µm 1
11,00 10,40 – 11,60
12,00 11,40 – 12,60
13,00 12,40 – 13,60
14,00 13,40 – 14,60
15,00 14,40 – 15,60
16,00 15,40 – 16,60
17,00 16,40 – 17,60
18,00 17,40 – 18,60
19,00 18,40 – 19,60
20,00 19,40 - 20,60
12 Mahr | Supplementary Catalog 2020 / 2021
