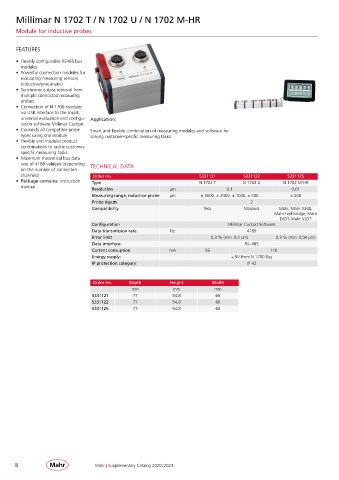

Millimar N 1702 T / N 1702 U / N 1702 M-HR

Module for inductive probes

FEATURES

• Flexibly configurable RS485 bus
modules
• Powerful connection modules for
evaluating measuring sensors
(inductive/pneumatic)
• Synchronous data retrieval from
multiple connected measuring
probes
• Connection of N 1700 modules
via USB interface to the smart,
universal evaluation and configu- Application:
ration software Millimar Cockpit
• Connects all compatible probe Smart and flexible combination of measuring modules and software for
types using one module solving customer-specific measuring tasks.
• Flexible and modular product
combinations to tackle customer-
specific measuring tasks
• Maximum theoretical bus data
rate of 4189 values/s (depending TECHNICAL DATA
on the number of connected
channels) Order no. 5331121 5331122 5331125
• Package contains: instruction Type N 1702 T N 1702 U N 1702 M-HR
manual
Resolution µm 0,1 0,01
Measuring range, inductive probe µm ± 5000, ± 2000, ± 1000, ± 500 ± 200
Probe inputs 2
Compatibility Tesa Marposs Mahr, Mahr 1340,
Mahr half-bridge, Mahr
LVDT, Mahr VLDT
Configuration Millimar Cockpit Software
Data transmission rate Hz 4189
Error limit 0,3 % (min. 0,2 μm) 0,3 % (min. 0,04 μm)
Data interface: RS– 485
Current consuption mA 95 110
Energy supply: + 5V from N 1700 Bus
IP protection category: IP 42

Order no. Depth Height Width
mm mm mm
5331121 77 54,8 66
5331122 77 54,8 66
5331125 77 54,8 66

8 Mahr | Supplementary Catalog 2020 / 2021
