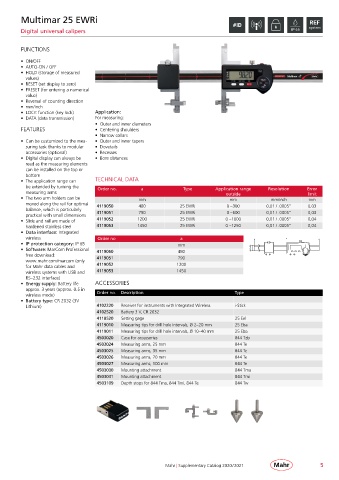

Multimar 25 EWRi

Digital universal calipers

FUNCTIONS

• ON/OFF
• AUTO-ON / OFF
• HOLD (storage of measured
values)
• RESET (set display to zero)
• PRESET (for entering a numerical
value)
• Reversal of counting direction
• mm/inch
• LOCK function (key lock) Application:
• DATA (data transmission) For measuring:
• Outer and inner diameters
FEATURES • Centering shoulders
• Narrow collars
• Can be customized to the mea- • Outer and inner tapers
suring task thanks to modular • Dovetails
accessories (optional) • Recesses
• Digital display can always be • Bore distances
read as the measuring elements
can be installed on the top or
bottom
• The application range can TECHNICAL DATA
be extended by turning the Order no. a Type Application range Resolution Error
measuring arms outside limit
• The two arm holders can be mm mm mm/inch mm
moved along the rail for optimal 4119050 480 25 EWRi 0 – 300 0,01 / .0005” 0,03
balance, which is particularly 4119051 790 25 EWRi 0 – 600 0,01 / .0005” 0,03
practical with small dimensions
• Slide and rail are made of 4119052 1200 25 EWRi 0 – 1000 0,01 / .0005” 0,04
hardened stainless steel 4119053 1450 25 EWRi 0 – 1250 0,01 / .0005” 0,04
• Data interface: Integrated
wireless Order no a
• IP protection category: IP 65 mm
• Software: MarCom Professional 4119050 480
free download: 4119051 790
www.mahr.com/marcom (only
for Mahr data cables and 4119052 1200
wireless systems with USB and 4119053 1450
RS– 232 interface)
• Energy supply: Battery life ACCESSORIES
approx. 3 years (approx. 0.5 in
wireless mode) Order no. Description Type
• Battery type: CR 2032 (3V
Lithium) 4102220 Receiver for instruments with Integrated Wireless i-Stick
4102520 Battery 3 V, CR 2032
4118520 Setting gage 25 Eel
4119010 Measuring tips for drill hole intervals, Ø 2– 20 mm 25 Eba
4119011 Measuring tips for drill hole intervals, Ø 10– 40 mm 25 Eba
4503020 Case for accessories 844 Tzb
4503024 Measuring arms, 25 mm 844 Te
4503025 Measuring arms, 35 mm 844 Te
4503026 Measuring arms, 70 mm 844 Te
4503027 Measuring arms, 100 mm 844 Te
4503030 Mounting attachment 844 Tma
4503031 Mounting attachment 844 Tmi
4503109 Depth stops for 844 Tma, 844 Tmi, 844 Te 844 Tw

Mahr | Supplementary Catalog 2020 / 2021 5
