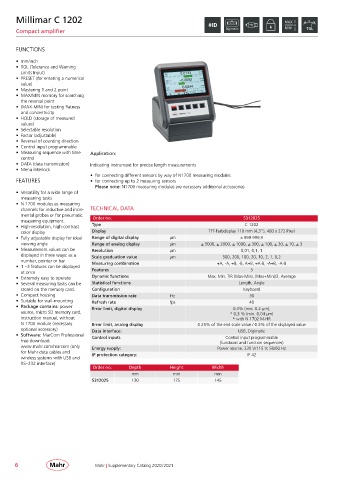

Millimar C 1202

Compact amplifier

FUNCTIONS

• mm/inch
• TOL (Tolerance and Warning
Limits Input)
• PRESET (for entering a numerical
value)
• Mastering 1 and 2 point
• MAX/MIN memory for searching
the reversal point
• (MAX-MIN) for testing flatness
and concentricity
• HOLD (storage of measured
values)
• Selectable resolution
• Factor (adjustable)
• Reversal of counting direction
• Control input programmable
• Measuring sequence with time Application:
control
• DATA (data transmission) Indicating instrument for precise length measurements
• Menu interlock
• for connecting different sensors by way of N1700 measuring modules
FEATURES • for connecting up to 2 measuring sensors
Please note: N1700 measuring modules are necessary additional accessories
• Versatility for a wide range of
measuring tasks.
• N 1700 modules as measuring
channels for inductive and incre- TECHNICAL DATA
mental probes or for pneumatic Order no. 5312025
measuring equipment.
• High-resolution, high-contrast Type C 1202
color display Display TFT-Farbdisplay 110 mm (4,3”), 480 x 272 Pixel
• Fully adjustable display for ideal Range of digital display µm ± 999 999,9
viewing angle Range of analog display µm ± 5000, ± 2000, ± 1000, ± 300, ± 100, ± 30, ± 10, ± 3
• Measurement values can be Resolution µm 0,01, 0,1, 1
displayed in three ways: as a Scale graduation value µm 500, 200, 100, 20, 10, 2, 1, 0,2
number, pointer or bar Measuring combination +A, -A, +B, -B, A+B, +A-B, -A+B, -A-B
• 1 – 3 features can be displayed
at once Features 3
• Extremely easy to operate Dynamic functions Max, Min, TIR (Max-Min), (Max+Min)/2, Average
• Several measuring tasks can be Statistical functions Length, Angle
stored on the memory card. Configuration Keyboard
• Compact housing Data transmission rate Hz 30
• Suitable for wall-mounting Refresh rate fps 40
• Package contains: power Error limit, digital display 0.3% (min. 0.2 µm);
source, micro SD memory card, * 0,3 % (min. 0,04 μm)
instruction manual, without * with N 1702 M-HR
N 1700 module (necessary Error limit, analog display 0.25% of the end scale value / 0.3% of the displayed value
optional accessory) Data interface: USB, Digimatic
• Software: MarCom Professional Control inputs Control input programmable
free download: (functions and function sequences)
www.mahr.com/marcom (only Energy supply: Power source, 230 V/115 V; 50/60 Hz
for Mahr data cables and IP protection category: IP 42
wireless systems with USB and
RS– 232 interface)
Order no. Depth Height Width
mm mm mm
5312025 130 175 145
